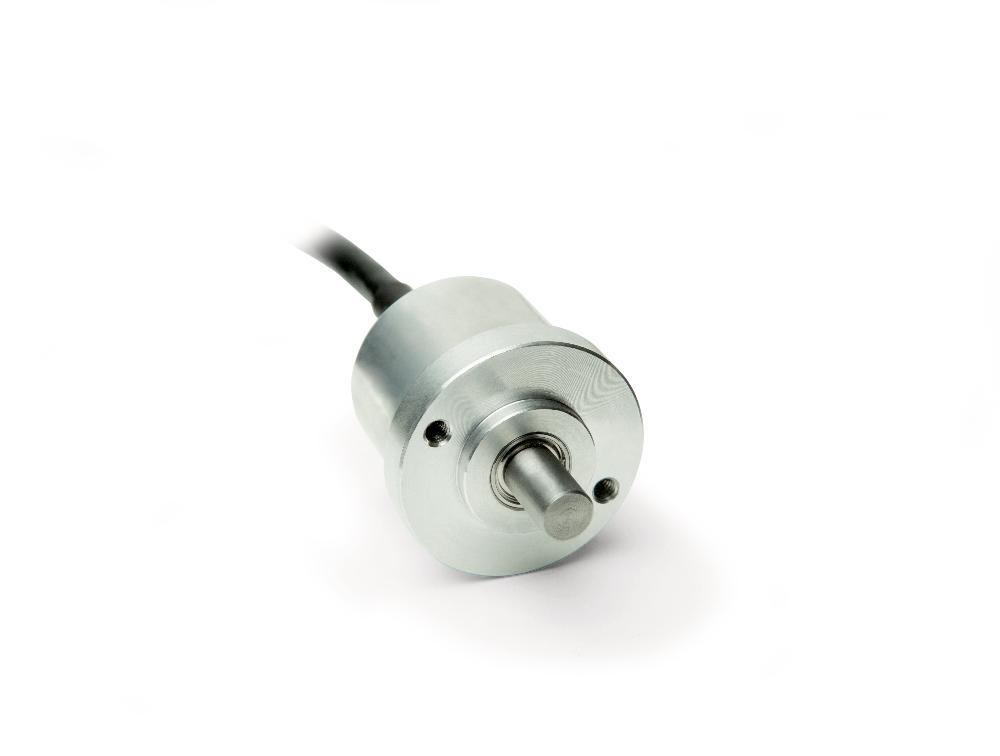

Incremental encoder IV2800

Optical miniature rotary encoder, max. 1024 pulses/revolution
SIKO Global, Incremental encoder IV2800
SIKO Global, Incremental encoder IV2800
The optical incremental rotary encoder IV2800 is very tough and particularly impressive in applications in confined spaces. With its robust bearings, short circuit-proof outputs and effective strain relief, it offers reliability in the most restricted environments!
  • Small design, Ø 28 mm
  • Resolutions of max. 1024 pulses/revolution
  • Robust bearing construction
  • Short circuit-proof outputs
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation North America
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Incremental encoder IV2800

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Shaft
rustproof stainless steel
Housing
aluminum
Speed
≤12000 min-1
Moment of inertia
~0.1 x 10-6 kgm2
Starting torque
0.01 Nm at 20 °C
Shaft load rating
10 N
radial
20 N
axial
Cable sheath
PVC
~Ø 4.5 mm
Cable bending radius
25 mm
static
75 mm
dynamic
Weight
~0.06 kg

PP output circuit

Feature
Technical data
Additional information
Operating voltage
8 … 30 V DC
reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption
50 mA typical
without load
Output signal level high
≥UB - 3.0 V
short-circuit proof
Output signal level low
≤0.5 V
short-circuit proof
Pulse frequency
≤160 kHz
Load
±50 mA
max. adm.
Type of connection
open cable end

OP output circuit

Feature
Technical data
Additional information
Operating voltage
8 … 30 V DC
reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption
50 mA typical
without load
Output signal level high
≥UB - 3.0 V
short-circuit proof
Output signal level low
≤0.5 V
short-circuit proof
Pulse frequency
≤160 kHz
Load
±50 mA
max. adm.
Type of connection
open cable end

LD5 output circuit

Feature
Technical data
Additional information
Operating voltage
5 V DC ±5 %
reverse polarity protected, the power-supply unit corresponds to Class 2 (UL 1310)
Current consumption
≤90 mA
without load
Output signal level high
≥2.5 V
short-circuit proof
Output signal level low
≤0.5 V
short-circuit proof
Pulse frequency
≤300 kHz
Load
±20 mA
max. adm.
Type of connection
open cable end

Signal image

Feature
Technical data
Additional information
Approval
UL
UL 61010-1, File No. E503367

Characteristics of functional safety

Feature
Technical data
Additional information
MTTFd
54.2 Year(s)
Feature
Technical data
Additional information
Ambient temperature
-20 … 85 °C
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-3
emitted interference / emission
Safety regulations
UL 61010-1
indoor use, outdoor use possible, not intended for use involving direct exposure to UV light.
Protection category
IP65 (housing side)
EN 60529 (protection type not yet reviewed by UL)
IP64 (shaft side)
EN 60529 (protection type not yet reviewed by UL)
Shock resistance
1000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
100 m/s2, 10 … 2000 Hz
EN 60068-2-6

More information

pin assignment

Signal
 Cable color PP
 Cable color OP, LD
GND
 white
 white
+UB
 brown
 brown
A
 green
 green
/A
 yellow
B
 yellow
 gray
/B
 Pink
0
 gray
 blue
/0
 red

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

pulses/
revolution

16

16

16
36
50
100
200
250
400
500
512
1000
1024

Position of electrical connection

A

A

A

axial

R

radial

Cable length

00,5

00.5

00.5
in m
02.0
03.0
05.0
08.0
10.0

Output circuit

PP

PP

PP

push-pull

OP

push-pull with inversion

LD5

LineDriver, 5 V

shaft diameter

5x10

5x10

5x10

ø5 mm, length 10 mm

with area
6x10

ø6 mm, length 10 mm

Your order key

IV2800 - AB0 - 16 - E1 - A - 00.5 - F28 - PP - 5x10 - IP64
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN

Installation Instructions

PDF

DE | EN

Certificate

UL

PDF

EN

CKCA conformity declarations

PDF

EN

Accessories

SIKO Global, Draw-wire encoder SG10
Draw-wire encoder SG10

  • Compact design

  • Universally applicable thanks to standardized interfaces

  • Easy mounting

Go to Product
SIKO Global, Draw-wire encoder SG21
Draw-wire encoder SG21

  • Wire-actuated encoder for rotary encoder with max. Ø36 mm flange

  • Measurement lengths up to 2000 mm

  • Sturdy zinc die-cast housing, robust design, stable measuring rope (stainless steel)

Go to Product

Comparable products

SIKO Global, Magnetic sensor MSK320R
Magnetic sensor MSK320R

  • Enhanced safety owing to independent output channels

  • 2 magnetic sensors and 2 signal conditioners in one sensor head

  • Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring

Go to Product
SIKO Global, Draw-wire encoder SG21
Draw-wire encoder SG21

  • Wire-actuated encoder for rotary encoder with max. Ø36 mm flange

  • Measurement lengths up to 2000 mm

  • Sturdy zinc die-cast housing, robust design, stable measuring rope (stainless steel)

Go to Product
SIKO Global, Absolute encoder AH25S
Absolute encoder AH25S

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection class

Go to Product

Scope of delivery

  • IV2800
  • Quick Start Guide
