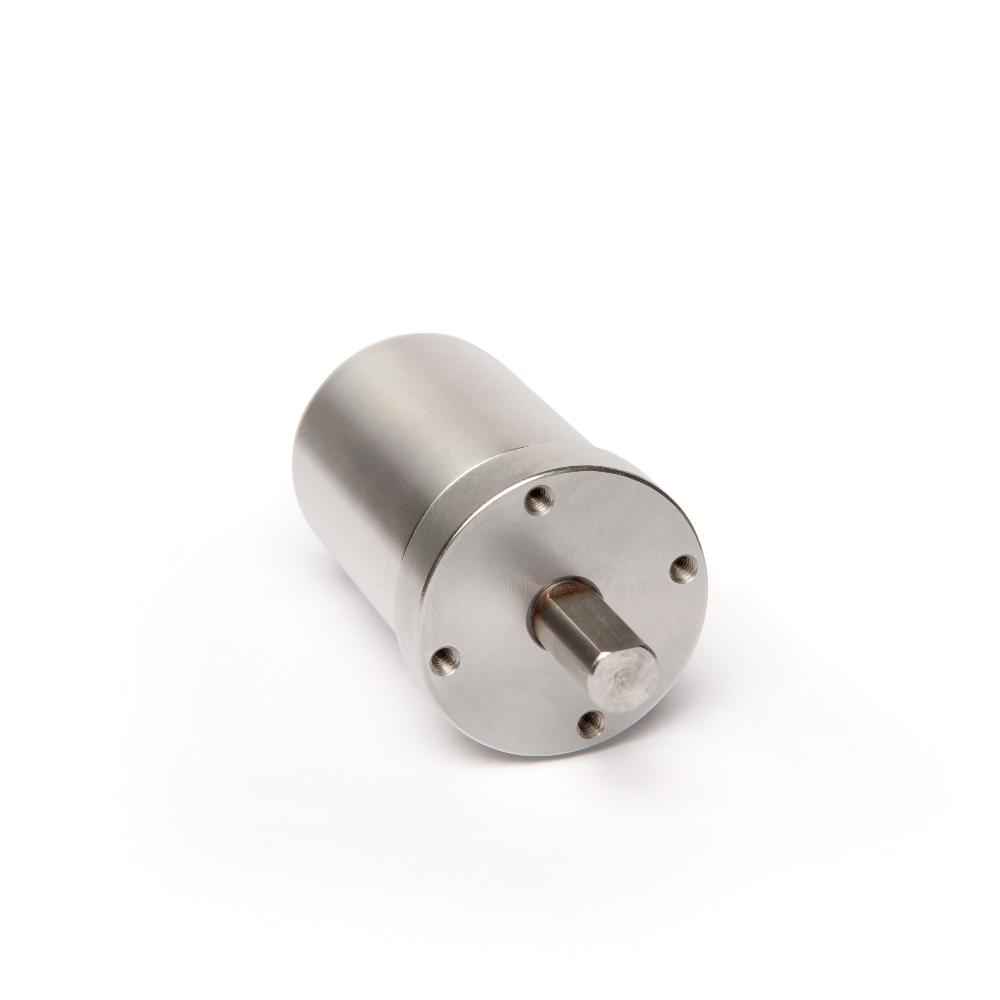

Absolute encoder WV42HD

Heavy-duty absolute rotary encoder
SIKO Global, Absolute encoder WV42HD
SIKO Global, Absolute encoder WV42HD
SIKO Global, Absolute encoder WV42HD
SIKO Global, Absolute encoder WV42HD
Magnetic absolute multi-turn rotary encoder in heavy-duty stainless-steel design – batteryless, robust and flexible. The WV42HD is predestined for demanding measuring jobs in the heavy-duty area owing to its extremely robust housing, its bearings, which are designed to tolerate high radial and axial loads as well as its high resistance against external impact.
  • Heavy-duty design in stainless steel
  • Compact design (42 mm diameter)
  • IP6K9K, IP68 protection class
  • Resistant to salt spray and acids
  • CANopen interface, SSI, analog
  • Multi-turn without battery
  • High shaft loadability of up to 270 N
  • 16 bit mult-iturn (65536 revolutions)
  • 13 bit single-turn (8192 revolutions)
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation North America
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Comparable products

Technical drawing

SIKO Global, Absolute encoder WV42HD

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Shaft
stainless steel
1.4112
Flange
stainless steel
1.4404
Housing
stainless steel
1.4404
Speed
≤12000 min-1
Starting torque
≤4 Ncm at 25 °C
Shaft load rating
≤270 N axial
≤270 N radial
Weight
~0.35 kg

Transducer, power output

Feature
Technical data
Additional information
Operating voltage
8 … 32 V DC
4 … 20 mA
Current consumption
20 mA @ 24 V (idling) typical
4 … 20 mA
Linearity
0.15 %
4 … 20 mA
Load
<500 Ω RLoad
4 … 20 mA, load against ground GND
Accuracy
±0.09 °
singleturn, 4 … 20 mA
Starting time
<500 ms
4 … 20 mA
Settling time
32 ms
4 … 20 mA

Transducer, voltage output

Feature
Technical data
Additional information
Operating voltage
8 … 32 V DC
0 … 10 V
Current consumption
15 mA typical
0 … 10 V
Linearity
0.15 %
0 … 10 V
Load
>5 kΩ RLoad
0 … 10 V, load against ground GND
Accuracy
±0.09 °
singleturn, 0 … 10 V
Starting time
<500 ms
0 … 10 V
Settling time
32 ms
0 … 10 V

CANopen interface

Feature
Technical data
Additional information
Operating voltage
9 … 30 V DC
reverse polarity protection
Power input
≤1.2 W
Interface
according to ISO 11898, galvanically isolated
CANopen (DS406)
Address
adjustable
via SDO or Layer Setting Service (LSS)
Baud rate
≤1 Mbit/s
Cycle time
≥1 ms

SSI interface

Feature
Technical data
Additional information
Operating voltage
4.5 … 30 V DC
reverse polarity protection
Power input
≤1 W
SSI clock speed input
100 kHz … 2 MHz
Interface
line driver to RS422
Cycle time
≥25 µs
Feature
Technical data
Additional information
Resolution
13 bit (analog output)
over the programmed measuring range
13 bit (singleturn)
current/voltage output
12 bit (singleturn)
CANopen, SSI
Measuring range
≥11.5 °
≤1 rotation(s)
singelturn
≤65536 rotation(s)
multiturn
16 rotation(s)
factory setting (multiturn)
Feature
Technical data
Additional information
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
98 %
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP68
EN 60529
IP6K9K
ISO 20653
Shock resistance
≤3000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
≤300 m/s2, 10 … 1 kHz
EN 60068-2-6

More information

pin assignment

MWI/MWU interface

Signal
 PIN
IOUT/UOUT
 1
GND
 2
+UB
 3
Set 2
 4
Set 1
 5

SSI interface

Signal
 PIN
GND
 1
+UB
 2
SSI clock+
 3
SSI clock-
 4
SSI data+
 5
SSI data-
 6
Calibration input
 7
Sense of rotation
 8

CAN interface

Signal
 PIN
CAN_GND
 1
+UB
 2
GND
 3
CAN_H
 4
CAN_L
 5

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface

CAN

CAN

CAN

CANopen (DS406)

MWI

4 … 20 mA

MWU

0 … 10 V

SSI/B

SSI binary

SSI/G

SSI gray

number of revolutions

1

1

1

singleturn

8192

13 bit

only SSI or CAN
65536

16 bit

only MWI or MWU

Your order key

WV42HD - CAN - 1 - M12
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

EU-conformity declarations

PDF

DE | EN | FR

User manual

PDF

EN

3D-CAD model

ZIP

CAD-Modell

Comparable products

SIKO Global, Absolute encoder AH25S
Absolute encoder AH25S

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection class

Go to Product

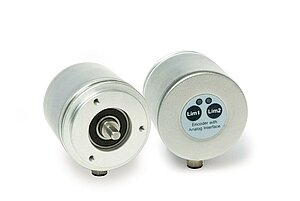

SIKO Global, Absolute encoder AV58M
