Absolute encoder AV58M

Metal housing with solid shaft
SIKO Global, Absolute encoder AV58M
SIKO Global, Absolute encoder AV58M
The AV58M rotary encoder with teach-in function is a magnetic absolute value encoder with analog output. The user himself can set the rotary encoder's desired measurement range via two buttons on the rear as well as two external inputs. The device features a batteryless multi-turn technology.
  • Absolute analog encoder
  • 13 Bit (8192) resolution over the measuring range
  • Operating tmperature until -40 °C
  • Voltage (0 … 10 V, 0.5 … 4.5 V), current (0 … 20 mA) outputs
  • Programmable measuring range via teach-in function with key funkcion or external inputs
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation North America
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Absolute encoder AV58M

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Shaft
rustproof stainless steel
Housing
nickel-plated steel
Speed
≤12000 min-1
Moment of inertia
≤20 gcm²
Starting torque
≤2 Ncm at 25 °C
Shaft load rating
20 N axial
80 N radial
Weight
~0.15 kg

Transducer, power output

Feature
Technical data
Additional information
Operating voltage
8 … 32 V DC
4 … 20 mA
Current consumption
20 mA @ 24 V (idling) typical
without load
Linearity
0.15 %
Load
<500 Ω at ≥ 15 V DC
4 … 20 mA
Accuracy
±0.09 °
Starting time
<500 ms
Settling time
32 ms
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin

Transducer, voltage output

Feature
Technical data
Additional information
Operating voltage
8 … 32 V DC
0 … 10 V
8 … 32 V DC
0.5 … 4.5 V
Current consumption
15 mA typical
without load
Linearity
0.15 %
Load
>10 kΩ at ≥ 12 V DC
0 … 10 V, 0.5 … 4.5 V
Accuracy
±0.09 °
Starting time
<500 ms
Settling time
32 ms
Type of connection
1x M12-plug connector (A-coded)
5-pole, 1x pin
Feature
Technical data
Additional information
Resolution
13 bit (output)
over the programmed measuring range
Measuring range
≥11.5 °
65536 rotation(s)
16 rotation(s)
factory setting
Feature
Technical data
Additional information
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
98 %
condensation inadmissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP66, IP67 (housing side)
EN 60529
IP65 (shaft side)
EN 60529
Shock resistance
≤1000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 10 … 1 kHz
EN 60068-2-6

More information

pin assignment

Signal
 PIN
Iout/Uout
 1
+UB
 2
GND
 3
"Limit 2 "
 4
Limit 1
 5

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface

0/10V

0/10V

0/10V

0 … 10 V

0,5/4,5V

0.5 … 4.5 V

4/20mA

4 … 20 mA

Your order key

AV58M - 0/10V - 6 - M12
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

EU-conformity declarations

PDF

DE | EN | FR

3D-CAD model

ZIP

CAD-Modell

Accessories

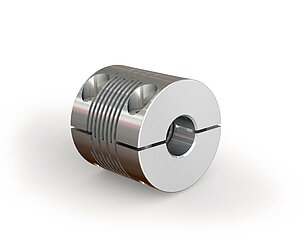

SIKO Global, Flexible coupling AK18
Flexible coupling AK18

  • Backlash-free compensation of mechanical manufacturing tolerances

Go to Product
SIKO Global, Cable extension KV05S0
Cable extension KV05S0

  • Ready-to-use cable connection

  • Cable length 3 m

  • Connection technology M12 (A-coded), 5-pole

Go to Product

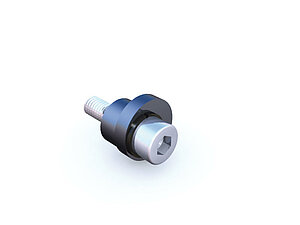

SIKO Global, Servo clamp SK
Servo clamp SK

  • For easy and secure fastening of rotary encoders with servo-flange

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109

Comparable products

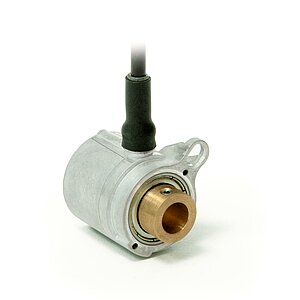

SIKO Global, Absolute encoder AH25S
Absolute encoder AH25S

  • Miniature absolute analog encoder

  • 12 bit (4096) resolution over 360°

  • IP65 protection class

Go to Product

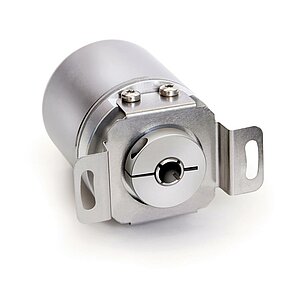

SIKO Global, Absolute encoder AH36M
Absolute encoder AH36M

  • Absolute analog encoder

  • 13 Bit (8192) resolution over the measuring range

  • 13 Bit (8192) resolution over the measuring range

Go to Product

Scope of delivery

  • AV58M
