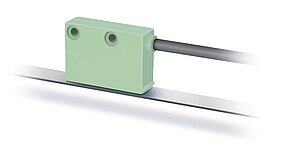

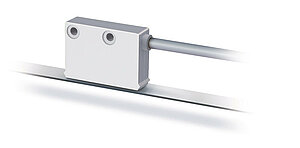

Magnetic sensor MSK4000
Compact sensor, incremental, digital interface, reading distance 20 mm
- Max. resolution of 0.25 mm
- Repeat accuracy ±2 increments (max. ±0.5 mm)
- Works with magnetic tape MB4000
- Reading distance ≤20 mm
Technical drawing
Technical data
Signal patterns
Note
The logical condition of signals A and B is not defined in reference to the index signal I or the reference signal R. It can deviate from the signal form.
More information
pin assignment
not inverted
|
Signal |
E1 |
E6X |
|
GND |
black |
1 |
|
+UB |
brown |
2 |
|
A |
red |
3 |
|
B |
orange |
4 |
|
nc |
5 |
|
|
nc |
6 |
|
|
nc |
7 |
inverted
|
Signal |
E1 |
E6X |
|
A |
red |
1 |
|
B |
orange |
2 |
|
nc |
3 |
|
|
+UB |
brown |
4 |
|
GND |
black |
5 |
|
/A |
yellow |
6 |
|
/B |
green |
7 |
Inverted with reference signal
|
Signal |
E1 |
E6X |
|
A |
red |
1 |
|
B |
orange |
2 |
|
I |
blue |
3 |
|
+UB |
brown |
4 |
|
GND |
black |
5 |
|
/A |
yellow |
6 |
|
/B |
green |
7 |
|
/I |
violet |
8 |
Hint for mounting
|
A, Sensor/tape reading distance |
5 … 20 mm |
|
B, Lateral offset |
±5 mm |
|
C, Alignment error |
±10° |
|
D, Longitudinal inclination |
±3° |
|
E, Lateral inclination |
±3° |
System components
Order
Product configuration
Feature
Select specifications
Additional information
Operating voltage
4
Type of connection
E1
Cable length
01.0
Output circuit
PP
output signal
NI
reference signal
O
Resolution
0.25
Scope of delivery
- MSK4000
- Fastening set
- Installation Instructions
