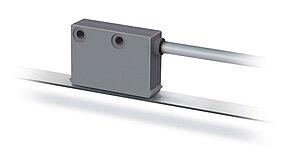

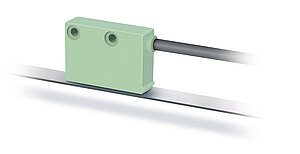

Magnetic sensor MSK400/1
Compact sensor, incremental, digital interface, resolution 1 mm
- Max. resolution 1 mm
- Repeat accuracy ±1 increment
- Works with magnetic tape MB400
- Reading distance ≤4 mm
Technical drawing
Technical data
Signal patterns
More information
pin assignment
not inverted
|
Signal |
E1 |
E6X |
|
GND |
black |
1 |
|
A |
red |
2 |
|
B |
orange |
3 |
|
nc |
4 |
|
|
+UB |
brown |
5 |
|
nc |
6 |
|
|
nc |
7 |
|
|
Shield |
white |
Hint for mounting
|
A, Sensor/tape reading distance |
≤4 mm |
|
B, Lateral offset |
±2 mm |
|
C, Alignment error |
±3° |
|
D, Longitudinal inclination |
±3° |
|
E, Lateral inclination |
±3° |
System components
Order
Product configuration
Feature
Select specifications
Additional information
Type of connection
E1
Cable length
02.0
Scope of delivery
- MSK400/1
- Fastening set
- Installation Instructions
