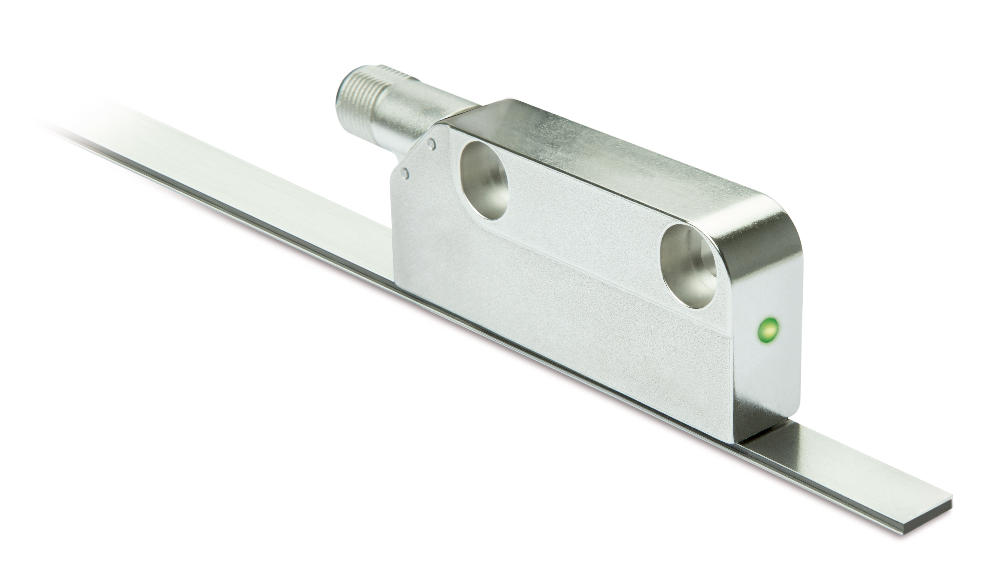

Magnetic encoder MSA213K
Absolute high-resolution, IO-Link interface, swivel-mounted plug
- High absolute resolution 1 μm
- Repeat accuracy max. ±1 μm
- Reading distance ≤0.8 mm
- Measuring range 0 … 16 m
- Function and status display LED
- IO-Link interface
- Additional incremental signals LD as an option

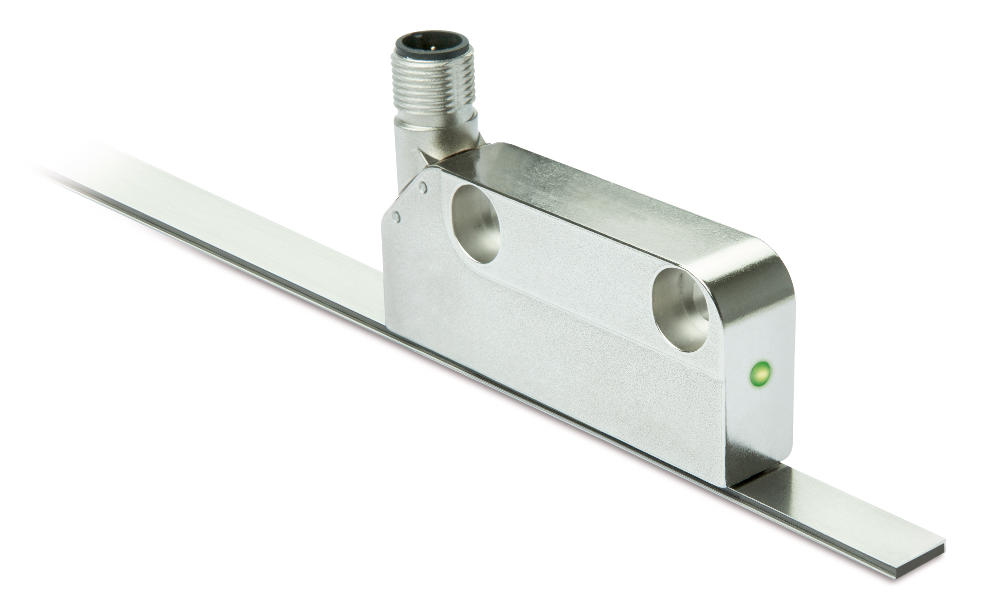

- Connection technology M12 (A-coded), swivel-mounted
- Industry 4.0 ready
Technical drawing
Technical data
Signal pattern, LD output circuit
Pulse interval, LD output circuit
Travel speed
|
Travel speed Vmax [m/s] |
|||||||
|
Resolution [µm] |
1 |
10.00 |
5.00 |
2.00 |
1.00 |
0.50 |
0.20 |
|
5 |
25.00 |
25.00 |
10.00 |
5.00 |
2.50 |
1.00 |
|
|
10 |
25.00 |
25.00 |
20.00 |
10.00 |
5.00 |
2.00 |
|
|
Pulse interval [μs] |
0.10 |
0.20 |
0.50 |
1.00 |
2.00 |
5.00 |
|
|
Counting frequency [kHz] |
2500.00 |
1250.00 |
500.00 |
250.00 |
125.00 |
50.00 |
|
|
3 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
More information
pin assignment
IO-Link interface without LD
|
Signal |
PIN |
|
L+ (+UB) |
1 |
|
I/Q |
2 |
|
L- (GND) |
3 |
|
C/Q |
4 |
IO-Link interface with LD
|
Signal |
PIN |
|
nc |
1 |
|
nc |
2 |
|
nc |
3 |
|
nc |
4 |
|
L+ (+UB) |
5 |
|
/A |
6 |
|
A |
7 |
|
/B |
8 |
|
B |
9 |
|
C/Q |
10 |
|
I/Q |
11 |
|
L- (GND) |
12 |
Industry 4.0
|
Process data |
Smart Value |
Smart Function |
|
Actual position |
-- |
Plausibility monitoring |
Hint for mounting
|
A, Sensor/tape reading distance |
≤0.8 mm |
|
B, Lateral offset |
±0.6 mm |
|
C, Alignment error |
±1° |
|
D, Longitudinal inclination |
max. sensor/tape A reading distance must never be exceeded. |
|
E, Lateral inclination |
max. sensor/tape A reading distance must never be exceeded. |
System components
Order
Product configuration
Feature
Select specifications
Additional information
Output circuit
LD
incremental resolution
1
Pulse interval
0.1

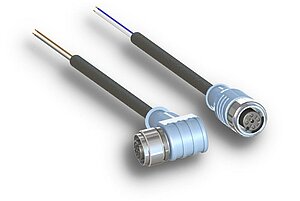

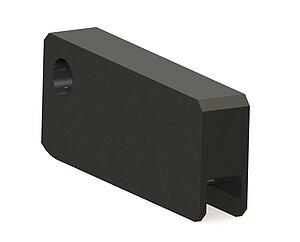

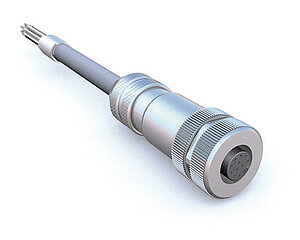

Accessories
Scope of delivery
- MSA213K
- Distance gage
- Quick Start Guide
