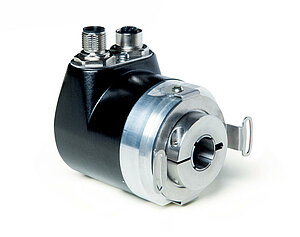

Absolute encoder WH5800M

absolute magnetic rotary encoder with hollow shaft
SIKO Global, Absolute encoder WH5800M
SIKO Global, Absolute encoder WH5800M
The WH5800M rotary encoder is a magnetic absolute rotary encoder with hollow shaft, which has been specially developed for use in mobile machines. Thanks to itsparticularly robust design and optionally a CANopen or SAE J1939interface, it is ideally suited for tough conditions in mobile machines. With the help of PURE.MOBILE extension boards such as integrated inclination sensors or rotary switches, the WH5800M can be flexibly expanded functionally without changing the design.
  • Hollow shaft to ø 15 mm
  • CANopen (DS406) or SAE J1939 interface
  • Salt spray tested housing available
  • High EMC compatibility
  • With PURE.MOBILE technology
  • Optional: Inclination sensor, bus address adjustable via rotary switch, digital I/O
  • E1 Approval by the German Federal Office for Motor Vehicles
  • Single turn or multiturn variant available
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation North America
+1 734 426-3476 konner.fierek(at)siko-global.com
Watch expert video
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Absolute encoder WH5800M

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Shaft
rustproof stainless steel
Flange
aluminum
Housing
aluminum die-cast
CDP-coated
Speed
≤3000 min-1
Moment of inertia
≤110 gcm²
Starting torque
≤3 Ncm at 20 °C
Shaft load rating
≤80 N
radial
≤40 N
axial
Cable sheath
PVC
E1 connection type
Cable bending radius
>25 mm
E1 connection type, static
Weight
~0.4 kg
Feature
Technical data
Additional information
Operating voltage
8 … 36 V DC
reverse polarity protection
Current consumption
20 mA at 36 V
28 mA at 24 V
76 mA at 8 V
Power input
≤800 mW
without load
Parameter storage
105 cycles
also applies to calibration operations
Status display
three-color LED (red/green/yellow)
device status/CAN status
Power rating
±36 V
CAN interface
Interface
according to ISO 11898-1, not electrically isolated
CANopen, CiA 301, CiA 303 Part 3, CiA 305, CiA 406
according to ISO 11898-1, not electrically isolated
SAE J1939
Address
1 … 127
Node ID, via SDO or Layer Setting Service (LSS)
128 … 239
SAE J1939, Node-ID
Baud rate
20 kbit/s
CANopen
50 kbit/s
CANopen
125 kbit/s
CANopen, SAE J1939
250 kbit/s
CANopen, SAE J1939
500 kbit/s
CANopen, SAE J1939
800 kbit/s
CANopen
1 Mbit/s
CANopen
Cycle time
1.5 ms typical
Starting time
<150 ms
Parameter
according to CiA 301, CiA 303 Part 3, CiA 305, CiA 406
CANopen
according to SAE J1939-21, -71, -81, DA
SAE J1939
Type of connection
1x M12-plug connector (A-coded)
5-pin, 1x pin (E12E connection type)
2x M12 plug connectors (A-coded)
5-pin, 1x pin, 1x socket (E12 connection type)
open cable end
E1 connection type
Feature
Technical data
Additional information
Scanning
magnetic
Resolution
14 bit
16384 steps/revolution
Measuring range
1 rotation(s)
singelturn
4096 rotation(s)
Approval
E1
UN ECE R10 approval No.: E1*10R05/01*8898*00
Feature
Technical data
Additional information
Ambient temperature
-40 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
100 %
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
EN 61326-3.1
immunity requirement of industrial applications, emission limit class B
ISO 11452-1, -2, -3, -4, -5
interference radiation ESA
ISO 7637-1, -2
transient pulses
ISO 10605
electrostatic discharge (ESD)
Protection category
IP67
EN 60529
Salt spray test
severity level 3
EN 60068-2-52 (ambient condition SN)
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27, half-sine, 3 axes (+/-), each 3 shocks
Vibration resistance
100 m/s2, 10 … 2000 Hz
EN 60068-2-6, 3 axes, each 10 cycles

More information

pin assignment

E12, E12E

Signal
 PIN
nc
 1
+UB
 2
GND
 3
CAN_H
 4
CAN_L
 5

E1

Signal
 Cable color E1
nc
 white
+UB
 brown
GND
 green
CAN_H
 yellow
CAN_L
 gray

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface/
protocol

CAN

CAN

CAN

CANopen

J1939

SAE J1939

number of revolutions

1

1

1

singleturn

4096

12 bit

hollow shaft/
diameter

10

10

10

ø10 mm

12

ø12 mm

15

ø15 mm

ambient conditions

S

S

S

standard

SN

salt spray tested housing

Type of connection

E1

E1

E1

open cable end

E12

Bus IN/Bus OUT

E12E

Bus IN

Cable length

01,0

01.0

01.0
in m
02.0
03.0
05.0
10.0
OK

without cable

option

O

O

O

without

DIP

rotary switch, address, baud rate

only with CANopen
IK1

inclination sensor, 1 axis

only with CANopen

Your order key

WH5800M - CAN - 16384 - 1 - 10 - S - IP67 - R - E1 - 01.0 - SW - O
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE
EN

SAE J1939

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN | FR

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

E1

PDF

DE | EN

Accessories

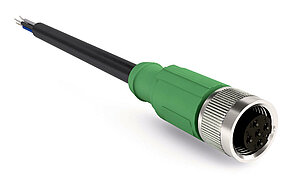

SIKO Global, Cable extension KV05S0
Cable extension KV05S0

  • Ready-to-use cable connection

  • Cable length 3 m

  • Connection technology M12 (A-coded), 5-pole

Go to Product

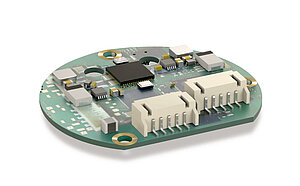

SIKO Global, Extension board DIP
Extension board DIP

  • easy manual setting of baud rate and bus address via rotary switch

  • No speical tools or programming knowledge required

  • easy commissioning

Go to Product
SIKO Global, Extension board IK1
Extension board IK1

  • single-axis inclination sensor 0 ... 360°

  • MEMS capacitive measurement principle

  • temperature-compensated from  -40 … 85° C

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109
Bus terminating connector, 5-pole, pin
82815

Comparable products

SIKO Global, Absolute encoder WV58MR-Testprodukt
Absolute encoder WV58MR-Testprodukt

  • absolute redundant safety encoders

  • CANopen Safety or CANopen redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WH58MR
Absolute encoder WH58MR

  • absolute redundant safety encoders

  • CANopen Safety, CANopen redundant or SAE J1939 redundant interface

  • Can be used in applications up to performance level PLd

Go to Product
SIKO Global, Absolute encoder WV5800M
Absolute encoder WV5800M

  • CANopen (DS406) or SAE J1939 interface

  • Salt spray tested housing available

  • High EMC compatibility

Go to Product
SIKO Global, Absolute encoder WV58MR
Absolute encoder WV58MR

  • absolute redundant safety encoders

  • CANopen Safety, CANopen redundant or SAE J1939 redundant interface

  • Can be used in applications up to performance level PLd

Go to Product

Scope of delivery

  • WH5800M
  • Quick Start Guide

Industries relevant to the product

Yellow excavator at work
Construction Machines
Wooden boards at a woodworking company
Woodworking
Rear view of three yellow mobile cranes
Crane and Lifting Technology
SIKO encoder systems for linear or rotary motor feedback
Motor Feedback
SIKO positioning systems for packaging technology
Packaging Technology
Highly precise electronic manufacturing thanks to SIKO's encoder solutions
Assembly and Handling Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
