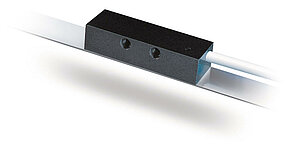

Magnetic sensor MSA501

Absolute, SSI interface, CANopen, resolution 1 μm
SIKO Global, Magnetic sensor MSA501
SIKO Global, Magnetic sensor MSA501
  • Max. resolution of 5 μm absolute, 1 μm incremental
  • Repeat accuracy of 0.005 mm
  • SSI, RS485, CANopen output circuits
  • Additional incremental signals LD as an option (SSI)
  • Reading distance ≤1.3 mm
  • Max. measuring length 10240 mm
  • Status LEDs for diagnosis
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Edward Stuart
Edward Stuart
Product Manager Business Unit MagLine
+1 734 426-3476 edward.stuart(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • System components
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Magnetic sensor MSA501

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Housing
zinc die-cast
Sensor/band reading distance
≤1.3 mm
Feature
Technical data
Additional information
Operating voltage
4.5 … 30 V DC
reverse polarity protection
Power input
1.5 W
SSI clock speed input
≤750 kHz
depending on cable length
Output circuit
without, LD (RS422)
Interface
SSI, RS485
CANopen
spec. 2.0A, DS 301, DS 406, ISO 11898
Baud rate
0.05 … 1 Mbit/s
CANopen
Cycle time
<25 µs
SSI/RS485
<40 µs
CANopen
Type of connection
M12 plug connector (A-coded)
12-pole, 1x pin
M12 plug connector (A-coded)
5 poles, 1x pin (CANopen)
Feature
Technical data
Additional information
Resolution
5, 10 µm
absolute
10 µm
absolute, CANopen factory setting, reconfigurable to 5 µm
1, 5, 10 µm
incremental
System accuracy
±(0.02 + 0.03 x L) mm, L in m at TU = 20° C
Repeat accuracy
≤5 µm, ±1 digit at TU = 20° C
Measuring range
≤10240 mm
Travel speed
≤5 m/s
absolute
see table
incremental

Travel speed

Travel/circumferential speed Vmax [m/s]
Resolution [mm]
 0.001
 		4.00
 1.60
 0.80
 0.32
 0.20
 0.10
 0.05
 0.03
 0.01
0.005
 		20.00
 8.00
 4.00
 1.60
 1.00
 0.50
 0.25
 0.13
 0.06
0.010
 		25.00
 16.00
 8.00
 3.20
 2.00
 1.00
 0.50
 0.25
 0.13
Pulse interval [μs]
 0.20
 0.50
 1.00
 2.50
 4.00
 8.00
 16.00
 32.00
 66.00
Counting frequency [kHz]
 1250.00
 500.00
 250.00
 100.00
 62.50
 31.25
 15.63
 7.81
 3.79
3
 1
 2
 2
 2
 2
 2
 2
 2
 2
 2
Feature
Technical data
Additional information
Ambient temperature
-30 … 85 °C
Storage temperature
-40 … 85 °C
Relative humidity
100 %
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529, with mating connector fitted
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

SSI, RS485 without LD

SSI
 RS485
 PIN
nc
 nc
 1
D+
 DÜA
 2
D-
 DÜB
 3
T-
 nc
 4
+UB
 +UB
 5
nc
 nc
 6
nc
 nc
 7
nc
 nc
 8
nc
 nc
 9
config
 config
 10
T+
 nc
 11
GND
 GND
 12

SSI with LD

SSI
 PIN
nc
 1
D+
 2
D-
 3
T-
 4
+UB
 5
/A
 6
A
 7
/B
 8
B
 9
config
 10
T+
 11
GND
 12

CANopen

Signal
 PIN
CAN_GND*
 1
+UB
 2
GND*
 3
CAN_H
 4
CAN_L
 5
* CAN_GND internally connected to GND

Industry 4.0

In most cases, data exchange with the magnetic encoders is limited to the exchange of process data. In addition to the process data, intelligent drives provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 --
 Plausibility monitoring
Speed

Hint for mounting

When mounting sensor and magnetic tape, please be careful to align both system components correctly. The arrow marks on the tape and sensor must point in the same direction when mounting the components.
A, Sensor/tape reading distance
 ≤1.3 mm
B, Lateral offset
 ±3 mm
C, Alignment error
 ±1.5°
D, Longitudinal inclination
 ±1°
E, Lateral inclination
 ±4°
(Sensor representation symbolic)

System components

SIKO Global, Magnetic sensor MSA501
Magnetic sensor MSA501
SIKO Global, Magnetic tape MBA501
Magnetic tape MBA501

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface

RS485

RS485

RS485

SIKONETZ3

SSI

SSI, RS422

CAN

CANopen

absolute resolution

5

5

5

5 µm

10

10 µm

CANopen factory setting

Output circuit

O

O

O

without LD

LD

LD, RS422 incremental

only with SSI

incremental resolution

1

1

1

1 µm

only with LD output circuit
5

5 µm

only with LD output circuit
10

10 µm

only with LD output circuit

Pulse interval

0,2

0.2

0.2
in µs
0.5
1.0
2.5
4.0
8.0
16.0
32.0
66.0

Your order key

MSA501 - RS485 - 5 - O - 1 - 0.2 - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE
EN

3D-CAD model

Link/URL

CAD-Modell

CKCA conformity declarations

PDF

EN

Installation Instructions

PDF

DE | EN

Software RS485

PDF

DE | EN

Software SSI

PDF

DE | EN

SW01

PDF

DE | EN

SW02

PDF

DE | EN

Setup-Package

ZIP

Download

EU-conformity declarations

PDF

DE | EN

Accessories

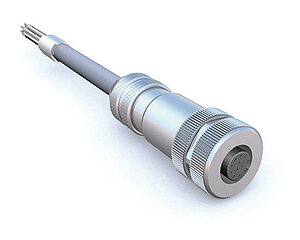

SIKO Global, Cable extension KV12S2
Cable extension KV12S2

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

Go to Product

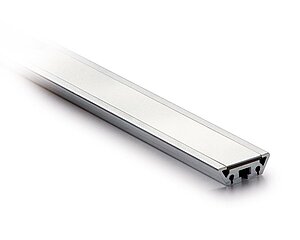

SIKO Global, Profile rail PSA
Profile rail PSA

  • Robust mounting unit for magnetic bands with 20 mm width

  • Extensible via plug-in modules

  • Easy mounting

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, socket
84109
Mating connector, 12-pole, socket
85277
Mating connector, 12-pole, angular socket
85278

Comparable products

SIKO Global, Magnetic sensor MSA
Magnetic sensor MSA

  • To be connected to magnetic displays MA505 and MA561

  • Max. resolution depends on downstream electronics unit

  • Repeat accuracy depends on downstream electronics unit

Go to Product
SIKO Global, Magnetic sensor MSA111C
Magnetic sensor MSA111C

  • Additional analog real-time signal output Sin/Cos 1 VSS for highly dynamic control (SSI/RS485)

  • Repeat accuracy 2 μm

  • System accuracy up to 10 μm

Go to Product

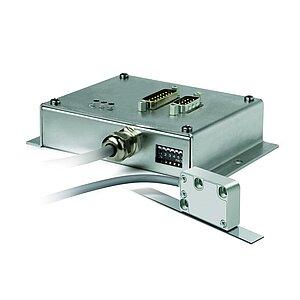

SIKO Global, Translation module ASA510H
Translation module ASA510H

  • Max. resolution 1 μm (LD)

  • SSI interface

  • Scale MB500/1 or MR500

Go to Product

Scope of delivery

  • MSA501
  • Fastening set
  • Installation Instructions

SIKO Application Reports

Pipetting machine during production process

Liquid handling system from Hamilton using SIKO magnetic measurement technology

Automated liquid handling systems have become crucial laboratory fixtures. They let you perform tests and analyses of thousands of substances and with greater speed, accuracy and most of all, reproducibility. To save even more time and enhance reliability, the Hamilton Company has equipped its…

Learn more

Industries relevant to the product

SIKO encoder systems for linear or rotary motor feedback
Motor Feedback

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
