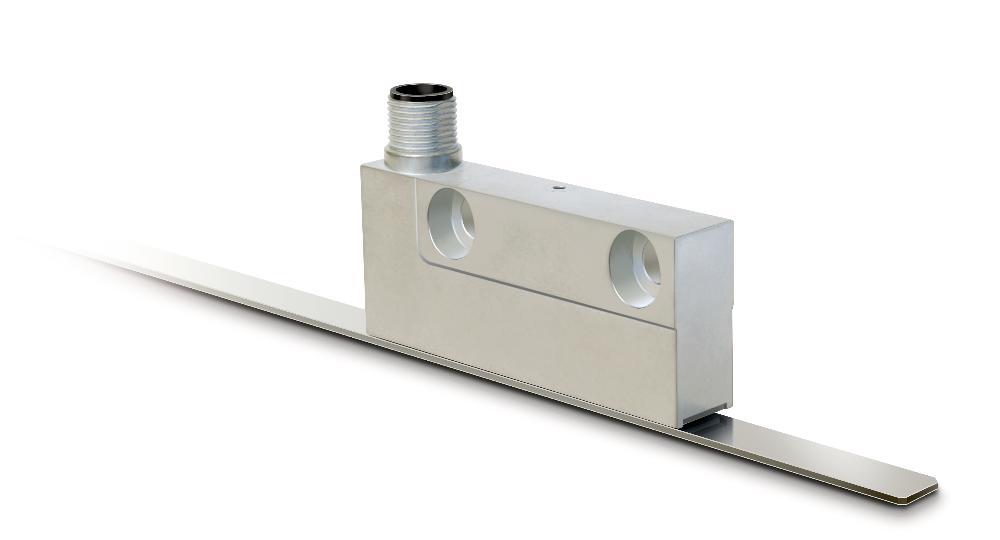

Magnetic sensor MSA111C

Absolute, high-resolution position capturing
SIKO Global, Magnetic sensor MSA111C
SIKO Global, Magnetic sensor MSA111C
High-resolution magnetic absolute sensor for use in dynamic processes
  • Additional analog real-time signal output Sin/Cos 1 VSS for highly dynamic control (SSI/RS485)
  • Repeat accuracy 2 μm
  • System accuracy up to 10 μm
  • SSI, RS485, DRIVE-CLiQ output circuits
  • Signal period 1 mm
  • Certified according to SIL2 (DRIVE-CLiQ) for safety applications
  • Temperature sensor input KTY84 or PT1000
  • Industry 4.0 ready
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Edward Stuart
Edward Stuart
Product Manager Business Unit MagLine
+1 734 426-3476 edward.stuart(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • System components
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Magnetic sensor MSA111C

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Housing
zinc die-cast
Sensor/band reading distance
≤0.3 mm
(without masking tape on magnetic tape)
Feature
Technical data
Additional information
Operating voltage
4.5 … 30 V DC
reverse polarity protected (RS485, SSI)
10 … 30 V DC
reverse polarity protected, SELV/PELV (DRIVE-CLiQ)
Power input
≤1.2 W
RS485, SSI
≤1.6 W
DRIVE-CLiQ
Temperature sensor input
external sensor, type KTY84 or PT1000
DRIVE-CLiQ (12-pole plug connector)
SSI clock speed input
≤750 kHz
caution: max. clock rate depends on cable length
Output voltage
1 V
RS485, SSI
Period length of sin/cos output
1000 µm
RS485, SSI
Interface
SSI, RS485, DRIVE-CLiQ
Real-time requirement
speed-proportional signal output
sin/cos output  (RS485, SSI)
Cycle time
25 µs
RS485, SSI
30 µs
DRIVE-CLiQ
Type of connection
M12 plug connector (A-coded)
12-pole, 1x pin (RS485, SSI, DRIVE-CLiQ with temperature sensor input)
M12 plug connector (A-coded)
8-pole, 1x pin (DRIVE-CLiQ)
Feature
Technical data
Additional information
Pole length
1 mm
Resolution
1 µm
System accuracy
±10 µm at TU = 20° C
Repeat accuracy
≤2 µm
unidirectional
Measuring range
≤4000 mm
Travel speed
≤2 m/s
static mode (RS485, SSI)
≤10 m/s
dynamic operation (sin/cos) (RS485, SSI)
≤5 m/s
DRIVE-CLiQ
Functional safety
SIL 2 according to EN 61508
as well as EN 61800-5-2 category 3, PL d according to EN ISO 13849-1: 2008 (DRIVE-CLiQ)
Failure rate
413 Year(s)
at 40 °C (MTTFd), DRIVE-CLiQ
3.82 x 10-9 /h
at 40 °C (PFH), DRIVE-CLiQ
Error detection
92.2 % at 40 °C (DCavg)
DRIVE-CLiQ
Safe position
6 mm
DRIVE-CLiQ
Feature
Technical data
Additional information
Ambient temperature
-30 … 85 °C
RS485, SSI
-30 … 80 °C
DRIVE-CLiQ
Storage temperature
-40 … 85 °C
Expansion coefficient
(11 ±1) x 10-6/K
Relative humidity
100 %
condensation admissible
EMC
EN 61000-6-2
interference resistance / immission
EN 61000-6-4
emitted interference / emission
Protection category
IP67
EN 60529, with mating connector fitted
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
<100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

RS485, SSI

RS485
 SSI
 PIN
adjust
 adjust
 1
D+
 D+
 2
D-
 D-
 3
nc
 T-
 4
+UB
 +UB
 5
/sin
 /sin
 6
sin
 sin
 7
/cos
 /cos
 8
cos
 cos
 9
config
 config
 10
nc
 T+
 11
0V
 0V
 12

DRIVE-CLiQ with temperature sensor input*

Signal
 Pin
+24 V
 1
T
 2
GND
 3
TXN
 4
TXP
 5
NC
 6
RXN
 7
RXP
 8
DÜA
 9
T
 10
nc
 11
DÜB
 12
* Only works with a connected temperature sensor

DRIVE-CLiQ without temperature sensor input

Signal
 PIN
+24 V
 1
DÜA
 2
RXP
 3
RXN
 4
GND
 5
TXN
 6
TXP
 7
DÜB
 8

Industry 4.0

In most cases, data exchange with the magnetic encoders is limited to the exchange of process data. In addition to the process data, intelligent drives provide additional information that can be evaluated for condition monitoring up to predictive maintenance:
Process data
 Smart Value
 Smart Function
Actual position
 Temperature
 Plausibility monitoring

Hint for mounting

When mounting sensor and magnetic tape, please be careful to align both system components correctly. The arrow marks on the tape and sensor must point in the same direction when mounting the components.
A, Sensor/tape reading distance
 ≤0.3 mm
B, Lateral offset
 +0.4 mm, -0.2 mm
C, Alignment error
 <±1°
D, Longitudinal inclination
 max. sensor/tape A reading distance must never be exceeded.
E, Lateral inclination
 max. sensor/tape A reading distance must never be exceeded.
(Sensor representation symbolic)

System components

SIKO Global, Mounting kit ZB3053
Mounting kit ZB3053
SIKO Global, Magnetic sensor MSA111C
Magnetic sensor MSA111C
SIKO Global, Magnetic tape MBA111
Magnetic tape MBA111

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface

SSI

SSI

SSI

RS422

DQ

DRIVE-CLiQ

RS485

SIKONETZ3

temperature sensor

K

K

K

without

E

for external temperature sensor KTY84

only with DQ interface
P

for external temperature sensor PT1000

only with DQ interface

connector position

H

H

H

horizontal

V

vertical

Software

S

S

S

standard

with SSI, RS485, DQwithout SIL2
SW1

SIL2-compliant

Only with DO.SIL2-compliance only ensured with ZB3053 mounting kit; it is imperative that the kit is ordered as well!

Your order key

MSA111C - SSI - K - H - S
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

EU-conformity declarations

PDF

DE | EN

Installation Instructions

PDF

DE | EN

Software DRIVE-CLiQ

PDF

DE | EN

Software RS485

PDF

DE | EN

Software SSI

PDF

DE | EN

SW01

PDF

DE | EN

Certificate

DRIVE-CLiQ Standard

PDF

EN

DRIVE-CLiQ with external temperature sensor input

PDF

EN

Functional Safety

PDF

DE | EN

Accessories

SIKO Global, Cable extension KV12S2
Cable extension KV12S2

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

Go to Product
SIKO Global, Installation tool ZB3055
Installation tool ZB3055

  • mounting aid for the MBA111, MBA213 absolute magnetic tape

  • Easy mounting of the magnetic tapes

  • Adjusted to the MSA111C, MSA213K sensor design

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 8-pole, socket
83525
Mating connector, 12-pole, socket
85277
Mating connector, 12-pole, angular socket
85278
Mating connector, 8-pole, angle socket
87599

Comparable products

SIKO Global, Translation module ASA110H
Translation module ASA110H

  • Max. resolution 1 μm (LD)

  • Repeat accuracy ±5 μm

  • SSI interface

Go to Product
SIKO Global, Absolute encoder WV36M/SSI
Absolute encoder WV36M/SSI

  • Compact design (36.5mm diameter)

  • SSI interface

  • IP65 protection class

Go to Product

Scope of delivery

  • MSA111C
  • Installation Instructions
  • Distance gage

SIKO Application Reports

Machine from Schunk company

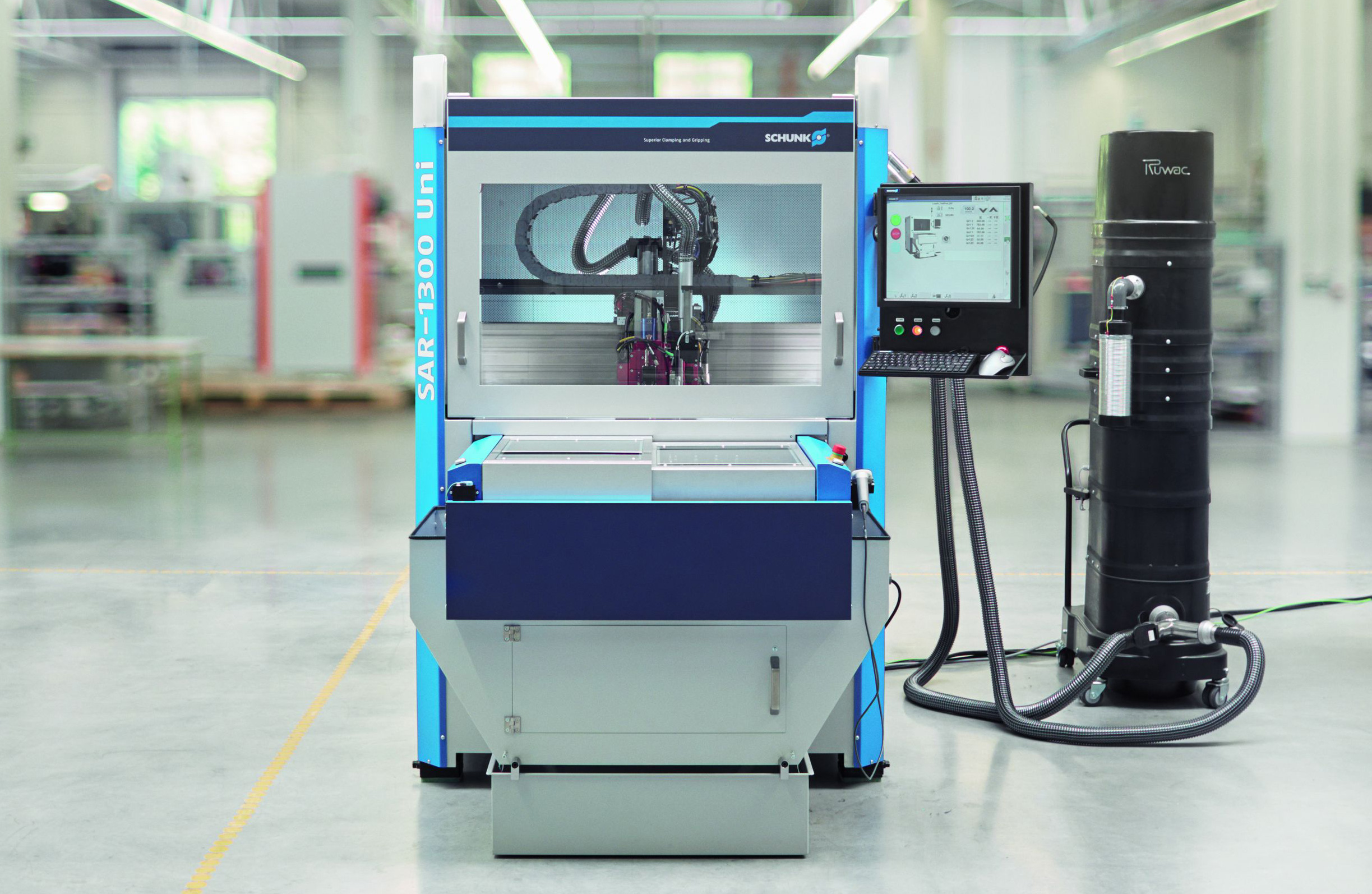

Magnetic sensor ensures safety features in depaneling machines

The new Machinery Directive 2006/42/EC has now been in force for some time, making it increasingly important for safety-related features to be implemented in mechanical engineering. In doing so, it is essential that safety features are guaranteed throughout the entire machine or system – firstly in…

Learn more
Pipetting machine during production process

Liquid handling system from Hamilton using SIKO magnetic measurement technology

Automated liquid handling systems have become crucial laboratory fixtures. They let you perform tests and analyses of thousands of substances and with greater speed, accuracy and most of all, reproducibility. To save even more time and enhance reliability, the Hamilton Company has equipped its…

Learn more

Industries relevant to the product

SIKO encoder systems for linear or rotary motor feedback
Motor Feedback

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
