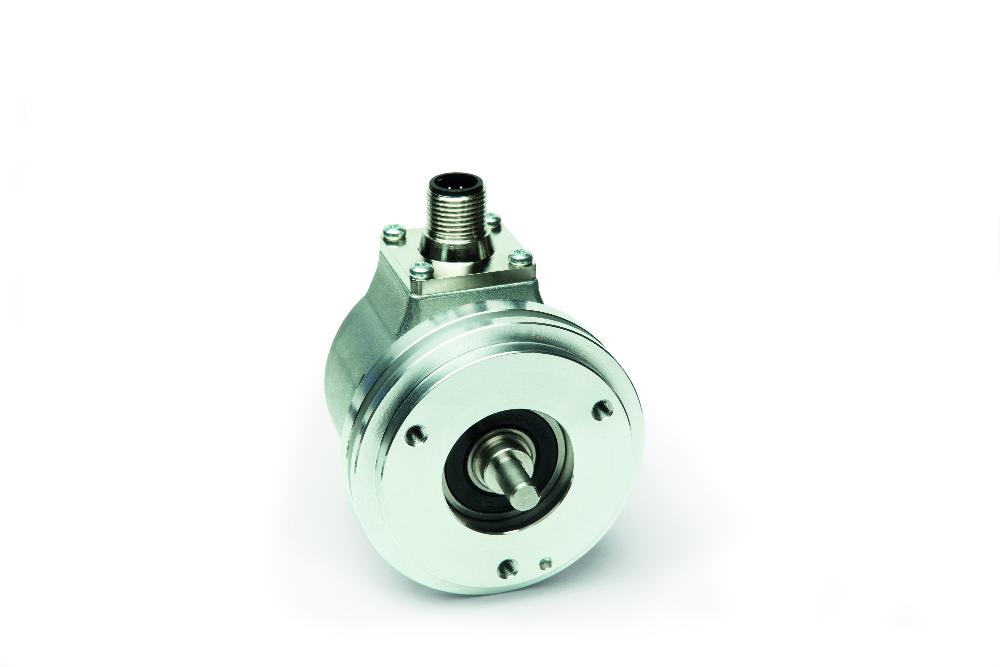

Incremental encoder IV5800
Robust optical standard rotary encoder, solid shaft
- Resolution max. 5000 pulses/revolution
- IP65 or IP66/IP67 protection class
- Robust bearing construction
- -40 … 85° C operating temperature
- High shock and vibration resistance
Technical drawing
Technical data
Dimensions
|
Measure ød [mm] |
Measure L [mm] |
|
6 |
10 |
|
8 |
15 |
|
10 |
20 |
PP output circuit
OP output circuit
LD output circuit
Signal image
Characteristics of functional safety
More information
pin assignment
Output circuit, LD, PP OP
|
Signal OP, LD |
"Signal PP " |
Cable color E1 |
|
/B |
nc |
Pink |
|
+SUB (sense line) |
+SUB (sense line) |
red-blue |
|
0 |
0 |
blue |
|
/0 |
nc |
red |
|
A |
A |
green |
|
/A |
nc |
yellow |
|
B |
B |
gray |
|
GND |
GND |
white |
|
SGND (sense line) |
SGND (sense line) |
gray-pink |
|
+UB |
+UB |
brown |
PP output circuit
|
Signal |
PIN E12 |
|
GND |
1 |
|
+UB |
2 |
|
A |
3 |
|
B |
4 |
|
0 |
5 |
Output circuit LD, OP
|
Signal |
PIN E2 |
|
/B |
1 |
|
+SUB (sense line) |
2 |
|
0 |
3 |
|
/0 |
4 |
|
A |
5 |
|
/A |
6 |
|
nc |
7 |
|
B |
8 |
|
nc |
9 |
|
GND |
10 |
|
SGND (sense line) |
11 |
|
+UB |
12 |
Order
Product configuration
Feature
Select specifications
Additional information
pulses/
revolution
50
Type of connection
E1
Position of electrical connection
A
Cable length
01.0
Mounting type
M1
Output circuit
PP
shaft diameter x length
6x10
Protection category
IP65

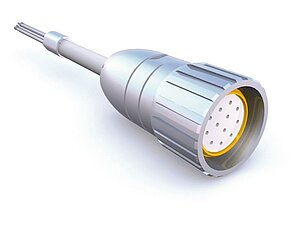

Accessories
Comparable products
Scope of delivery
- IV5800
- Quick Start Guide
