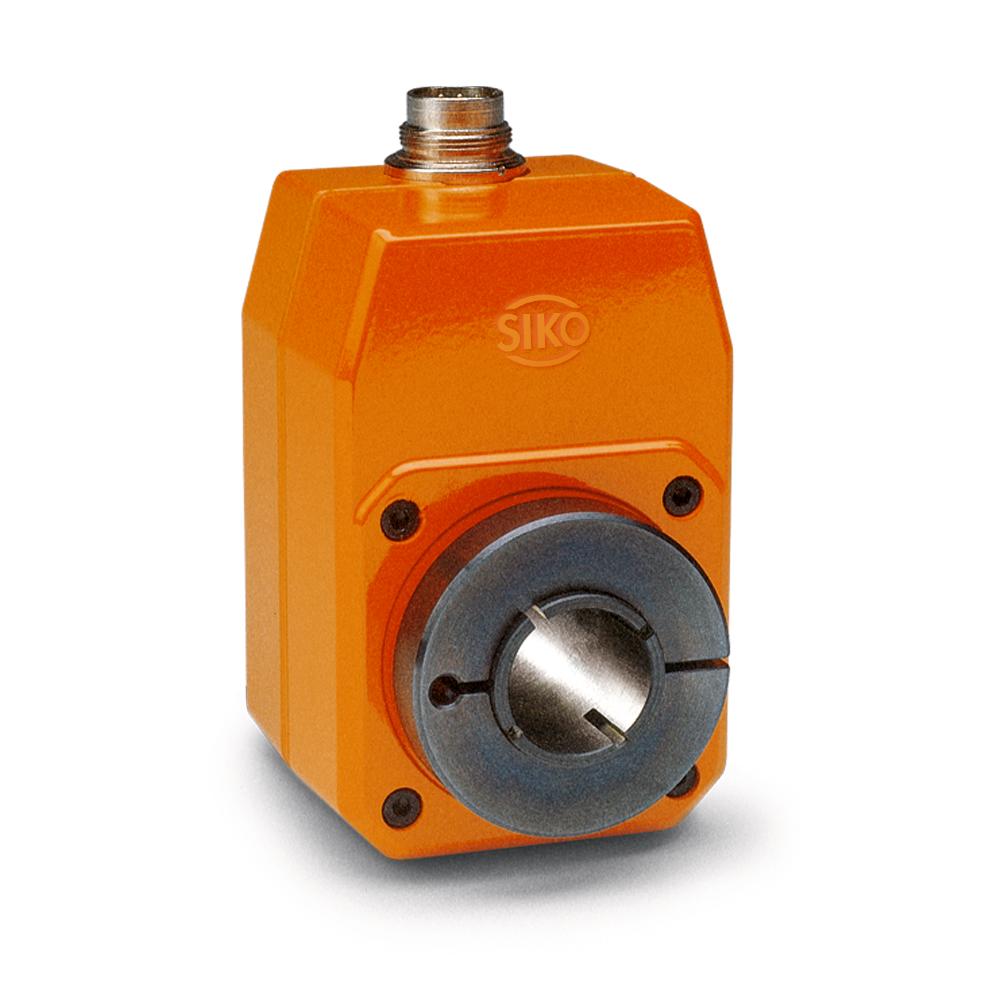

Incremental encoder IG07

Housing made of zinc die-cast with through hollow shaft
SIKO Global, Incremental encoder IG07
SIKO Global, Incremental encoder IG07
The IG07 is a robust incremental encoder with through hollow shaft, which is nearly indestructible even under the harshest ambient conditions.
  • Resolutions of max. 1024 pulses/revolution
  • Through hollow shafts up to ø20 mm
  • Housing made of zinc die-cast
  • High shaft load rating, radial 5600 N, axial 1400 N
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Konner Fierek
Konner Fierek
Key Account Manager Mobile Automation North America
+1 734 426-3476 konner.fierek(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Incremental encoder IG07

Technical data

Mechanical data
Electrical data
Ambient conditions
Feature
Technical data
Additional information
Shaft
black-finished steel
Housing
zinc, die-cast
Speed
≤6000 min-1
IP64
≤3000 min-1
IP65
Moment of inertia
~28.5 x 10-6 kgm2
W01 shaft design
~58.5 x 10-6 kgm2
W02 shaft design
Starting torque
≤6 Ncm at 20 °C
IP64
≤10 Ncm at 20 °C
IP65
Shaft load rating
1400 N axial
5600 N radial
Cable sheath
PVC
Weight
~0.75 kg

PP output circuit

Feature
Technical data
Additional information
Operating voltage
10 … 30 V DC
reverse polarity protection
Current consumption
40 mA typical
without load (AB0 output signals)
Output signal level high
UB -2 V
Output signal level low
≤1 V at 40 mA
Pulse frequency
≤80 kHz
Phasing
90° ±30°
Load
±40 mA short-circuit proof
max. adm.

OP output circuit

Feature
Technical data
Additional information
Operating voltage
10 … 30 V DC
reverse polarity protection
Current consumption
40 mA typical
without load (AB0 output signals)
Output signal level high
UB -2 V
Output signal level low
≤1 V at 40 mA
Pulse frequency
≤80 kHz
Phasing
90° ±30°
Load
±40 mA short-circuit proof
max. adm.

LD output circuit

Feature
Technical data
Additional information
Operating voltage
5 V DC ±5 %
no reverse polarity protection
Current consumption
40 mA typical
without load (AB0 output signals)
Output signal level
RS422 A spec.
Pulse frequency
≤50 kHz
Phasing
90° ±30°
Load
±40 mA short-circuit proof
max. adm.

LD24 output circuit

Feature
Technical data
Additional information
Operating voltage
10 … 30 V DC
no reverse polarity protection
Current consumption
40 mA typical
without load (AB0 output signals)
Output signal level
RS422 A spec.
Pulse frequency
≤50 kHz
Phasing
90° ±30°
Load
±40 mA short-circuit proof
max. adm.

Signal image

Feature
Technical data
Additional information
Ambient temperature
… 60 °C
Storage temperature
-20 … 85 °C
Protection category
IP64, IP65
EN 60529
Shock resistance
2000 m/s2, 6 ms
EN 60068-2-27
Vibration resistance
100 m/s2, 50 Hz
EN 60068-2-6

More information

pin assignment

PP output circuit

Signal
 E1
 EX, E3, E4
GND
 gray
 1
A
 yellow
 2
B
 white
 3
0/I
 green
 4
+UB
 brown
 5
nc
 6
nc
 7

OP output circuit

Signal
 E1
 EX, E3, E4
GND
 gray
 1
A
 yellow
 2
B
 white
 3
nc
 4
+UB
 brown
 5
/A
 Pink
 6
/B
 blue
 7

Output circuit OP

Signal
 E1
 EX, E3, E4
A
 yellow
 A
B
 white
 B
0
 green
 C
/A
 Pink
 D
/B
 blue
 E
I
 violet
 F
GND
 gray
 G
GND
 black
 H
+UB
 brown
 J
+UB
 red
 K
nc
 L
nc
 M

Output circuit LD, LD24

Signal
 E1
 EX, E3, E4
A
 yellow
 A
/A
 green
 B
GND
 gray
 C
+UB
 Pink
 D
B
 white
 E
/B
 brown
 F
+SUB only with LD5
 red
 G
SGND only with LD5
 blue
 H
0
 red-blue
 J
0
 gray-pink
 K
GND
 black
 L
+UB
 violet
 M

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

output signal

AXX

AXX

AXX
ABX
ABO
ABI
AXO
AXI

pulses/
revolution

1

1

1
2
5
10
20
25
30
36
40
50
60
70
80
90
100
125
150
200
220
250
300
360
400
500
512
585
600
750
800
900
1000
1024
0

others on request

Type of connection

EX

EX

EX

without cable

E1

open cable ends

E3

right angle plug

E4

connector

Cable length

00,5

00.5

00,5

0.5 m

02.0 0.5 m
02.0 50 m, in intervals of 0.1 m
OK

without cable

Mounting type

1

1

1

with blind hole

2

with flange

Output circuit

PP

PP

PP

push-pull

OP

push-pull with inverted signals

LD

Line Driver

LD24

line driver, 24 V

shaft design/
diameter

W01

W01

W01

20 mm

ball bearing and lock screw
W01/RH12

with reducing bush 12 mm

ball bearing and lock screw
W01/RH14

with reducing bush 14 mm

ball bearing and lock screw
W01/RH15

with reducing bush 15 mm

ball bearing and lock screw
W01/RH16

with reducing bush 16 mm

ball bearing and lock screw
W02

20 mm

ball bearing and lock ring
W02N

20 mm, stainless steel

ball bearing and lock ring

bearing

MS

MS

MS

IP64, high-precision sealing gap

RS

IP65, increased bearing seal

Your order key

IG07 - AXX - 1 - EX - 00.5 - 1 - PP - W01 - MS - SV - SG
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Installation Instructions

PDF

DE | EN

CKCA conformity declarations

PDF

EN

EU-conformity declarations

PDF

DE | EN

Accessories

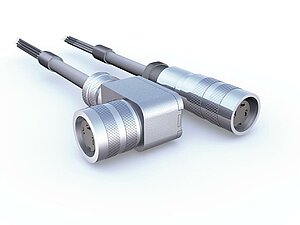

SIKO Global, Cable extension KV07S0
Cable extension KV07S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 7-pole

Go to Product
SIKO Global, Cable extension KV12S0
Cable extension KV12S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 12-pole

Go to Product

Comparable products

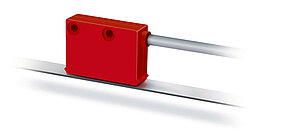

SIKO Global, Magnetic sensor MSK320
Magnetic sensor MSK320

  • Max. resolution 12.5 μm

  • max. resolution 0.006° with MR320 or MBR320 (250 poles)

  • Repeat accuracy ±0.04 mm

Go to Product

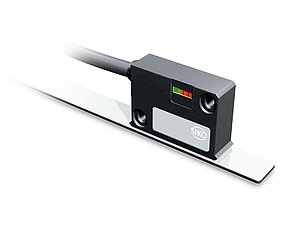

SIKO Global, Magnetic sensor MSK5000
Magnetic sensor MSK5000

  • max. resolution 1 μm

  • Repeat accuracy ±0.01 mm

  • Repeat accuracy ±1 increment

Go to Product
SIKO Global, Incremental encoder IH5815
Incremental encoder IH5815

  • Resolution max. 5000 pulses/revolution

  • Through hollow shaft up to max. ø15 mm

  • Robust bearing construction

Go to Product
SIKO Global, Incremental encoder IH5828
Incremental encoder IH5828

  • Resolution max. 5000 pulses/revolution

  • Through hollow shaft up to max. ø28 mm

  • M12 or cable connection

Go to Product

Scope of delivery

  • IG07

Industries relevant to the product

Yellow excavator at work
Construction Machines
Wooden boards at a woodworking company
Woodworking
Rear view of three yellow mobile cranes
Crane and Lifting Technology
SIKO encoder systems for linear or rotary motor feedback
Motor Feedback
SIKO positioning systems for packaging technology
Packaging Technology
Highly precise electronic manufacturing thanks to SIKO's encoder solutions
Assembly and Handling Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
