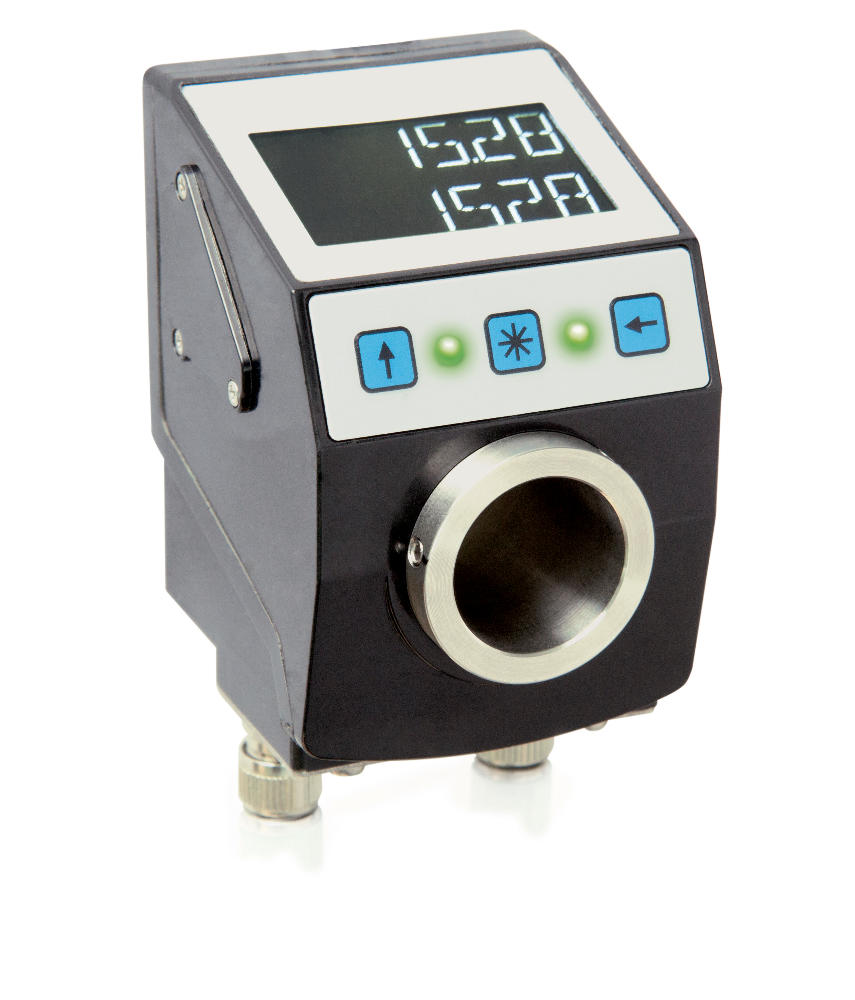

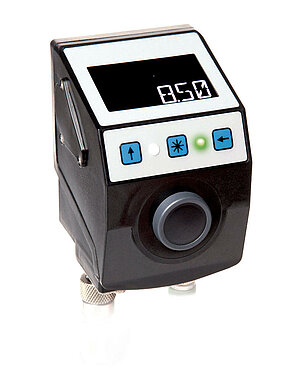

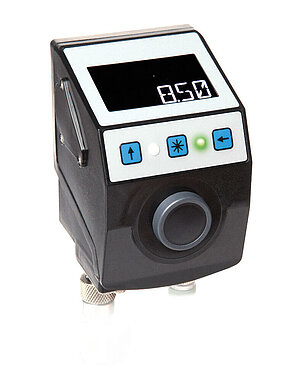

Electronic position indicator AP10

With interface

The AP10 position indicator with communication interface is used for monitored format adjustment to reduce setup times and increase machine efficiency. Readability is optimized for intuitive user prompting: The backlit display clearly shows the setpoint and actual value, and the two LEDs clearly indicate the direction in which the adjustment must be made. The IO link interface enables easy and reliable integration into modular machines.

Electronic position indicator with interface
Stainless-steel hollow shaft ø20 mm, up to ø25.4 mm as an option
Backlit display
Two-line LCD for target and actual values
Reset, incremental measurement, offset via keyboard
Integrated RS485 interface, CAN bus or IO-Link as an option
Robust sensor technology unit thanks to magnetic scanning

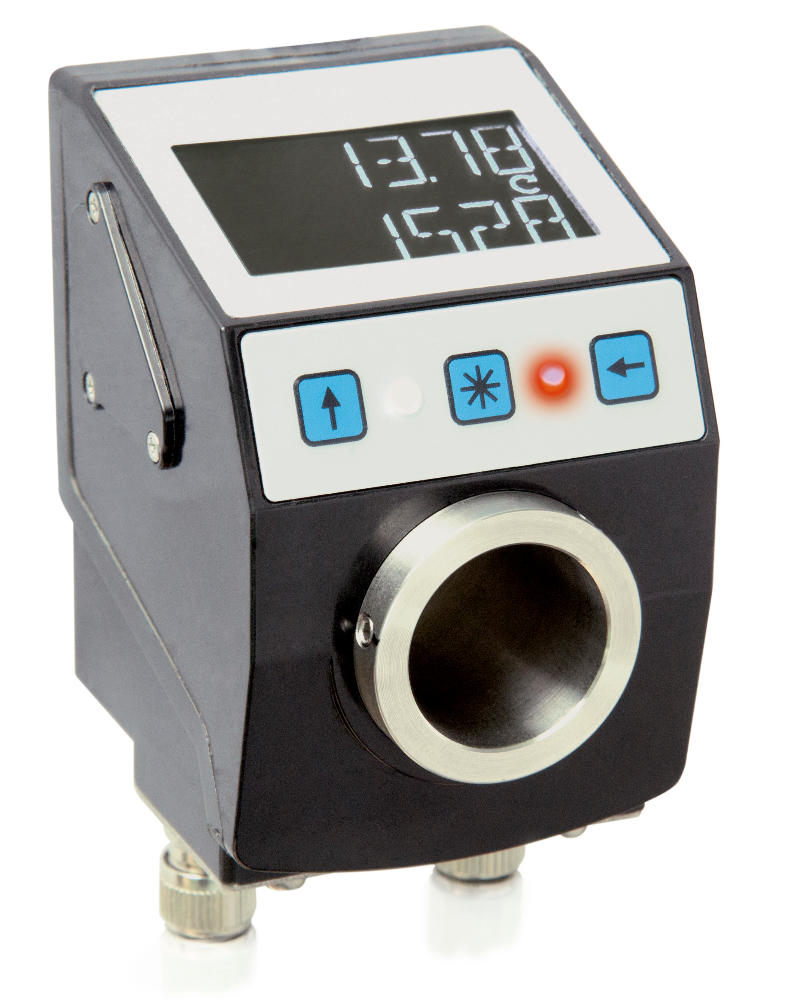

User guidance through status LEDs

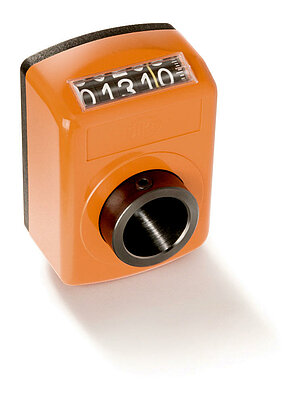

Mechanically compatible with the DA09S position indicator
IP53 protection class, IP65 as an option
Industry 4.0 ready

Ben King

Inside Sales

+1 734 426-3476 ben.king(at)siko-global.com

Cary Mulvany

Manager Business Unit Changeover Solutions

+1 734 426-3476 cary.mulvany(at)siko-global.com

Add to Watchlist

More information

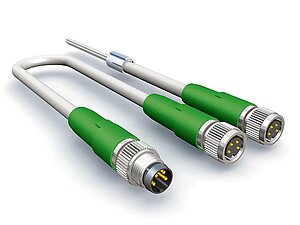

pin assignment

Interfaces

RS485	CAN-Bus	IO-Link	PIN
TxRx-/DÜB	CANL	L+ (+UB)	1
TxRx+/DÜA	CANH	nc	2
+UB	+UB	L- (GND)	3
GND	GND	C/Q	4

Industry 4.0

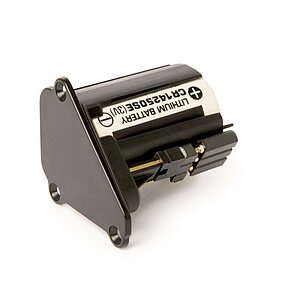

In most cases, data exchange with the position indicators is limited to the exchange of process data. In addition to the process data, intelligent displays provide additional information that can be evaluated for condition monitoring up to predictive maintenance:

Process data	Smart Value	Smart Function
Actual position	Battery voltage	Battery change planning
"Target position "	Speed	Overload

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Interface/
protocol

CAN

CANopen

S3/09

RS485/SIKONETZ5

IOL

IO-Link

hollow shaft/
diameter

20

ø20 mm

25,4

ø25.4 mm

RH14

reducing bushes

0

others on request

torque pin/
position

II

distance 30 mm

I

distance 22 mm

optional

Protection category

IP53

IP65

Sight window

SF

front foil

K

plastic

impact protection

Your order key

AP10 - CAN - 20 - A - II - IP53 - EX - SF - S

Would you like to request a non-binding offer?

Quantity:

Downloads

Data sheet

PDF

Quick Start Guide

PDF

DE | EN

User manual

CANopen

PDF

DE

EN

IO-Link

PDF

DE

EN

SIKONETZ5

PDF

DE

EN

3D-CAD model

Link/URL

EU-conformity declarations

PDF

DE | EN | FR

Safety specifications sheet

PDF

EN

Installation Instructions

PDF

DE | EN

Setup-Package

ZIP

Download

Certificate

UL

PDF

EN

CKCA conformity declarations

PDF

EN

Scope of delivery

AP10
Installation Instructions
