Positioning drive AG01 inkremental

Incremental
SIKO Global, Positioning drive AG01 inkremental
SIKO Global, Positioning drive AG01 inkremental
High-performance compact actuator for simple positioning tasks
  • Easy mounting
  • Through hollow shafts up to max. ø14 mm possible
  • Integrated magnetic position encoder on output shaft
  • Electrical connection via cable or connector
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Positioning drive AG01 inkremental

Technical data

Mechanical data
Electrical data
Ambient conditions
Feature
Technical data
Additional information
Shaft
black-finished steel
Housing
aluminum, powder coated zinc die cast
Nominal torque/rated speed
1.1 Nm at 430 min-1
i = 12.4 (70 W motors)
2.1 Nm at 225 min-1
i = 24 (70 W motors)
4.2 Nm at 110 min-1
i = 48 (70 W motors)
Operating mode
S3 intermittent operation: 25 % DC, 10 min.
EN 60034-1
Weight
~1.5 kg

Motor

Feature
Technical data
Additional information
Operating voltage
… 24 V DC
70 W motors
Power input
70 W
Rated current
2.9 A ±10 % (70 W-M motor)
3.2 A max. load current
4.1 A ±10 % (70 W-G motor)
4.5 A max. load current
Type of connection
2x M9 plug connectors
4-pole, 1x pin| 8-pole, 1x pin

Encoder

Feature
Technical data
Additional information
Operating voltage
5 V DC ±5 %
LD5 position encoder
24 V DC ±20 %
LD24 + OP position encoder
Current consumption
≤35 mA
Output circuit
Line Driver (RS422)
LD5 + LD24 position encoders
Push Pull (OP)
OP position encoder
Output signals
A, B, 0, /A, /B, I
Pulse frequency
≤20 kHz
Feature
Technical data
Additional information
Ambient temperature
… 70 °C
… 80 °C
without position encoder
Storage temperature
-20 … 80 °C
Relative humidity
condensation inadmissible
EMC
EN 61800-3, second environment
interference resistance / immission
EN 61800-3, C3
emitted interference / emission
Protection category
IP63 with mounted mating connectors
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Motor

Signal
 EX
 E1
+
 1
 M1, white imprinted
+
 2
-
 3
 M2, white imprinted
-
 4

Encoder

Signal
 EX
 E1
B
 1
 white
+UB
 2
 brown
O
 3
 green
A
 4
 yellow
GND
 5
 gray
/A
 6
 Pink
/B
 7
 blue
I
 8
 red

Performance curve

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Gear ratio

48

48

48

i = 48

24

i = 24

12,4

i = 12.4

motor performance

70W-M

70W-M

70W-M

24 V DC

70W-G

24 V DC

0

others on request

shaft design/
diameter

KR/14

KR/14

KR/14

clamping ring ø14 mm

KR/12

clamping ring, ø12 mm

N/10

keyway, ø10 mm

only for type S hollow shaft

hollow shaft type

S

S

S

blind hole

D

full-length

Torque pin

A

A

A

bolt, ø6 mm

B

lug I

incl. elastomer bushing

Type of connection

E1

E1

E1

open cable

EX

socket on the device

motor cable length

2

2

2

in m

0

others on request

encoder cable length

2

2

2

in m

0

others on request

position encoder

LD24

LD24

LD24

Incremental encoder 1024 pulses

LD5

Incremental encoder 1024 pulses

OP

push-pull with inverting

O

without

Your order key

AG01 inkremental - 48 - 70W-M - KR/14 - S - A - E1 - 2 - 2 - LD24
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Quick Start Guide

PDF

DE | EN

3D-CAD model

Link/URL

CAD-Modell

Installation Instructions

PDF

DE | EN

Accessories

SIKO Global, Cable extension KV04S0
Cable extension KV04S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M9, 4-pole

Go to Product

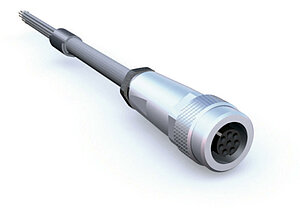

SIKO Global, Cable extension KV08S0
Cable extension KV08S0

  • Ready-to-use cable connection

  • Cable lengths up to 15 m

  • Connection technology M9, 8-pole

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 8-pole, socket
81351
Mating connector, 4-pole, socket
83447

Comparable products

SIKO Global, Positioning drive AG03/1
Positioning drive AG03/1

  • Space-saving, easy mounting

  • Through hollow shafts up to max. ø14 mm

  • Brushless 50 W, 24 V EC motor with long service life

Go to Product

Scope of delivery

  • AG01 inkremental
  • Quick Start Guide
