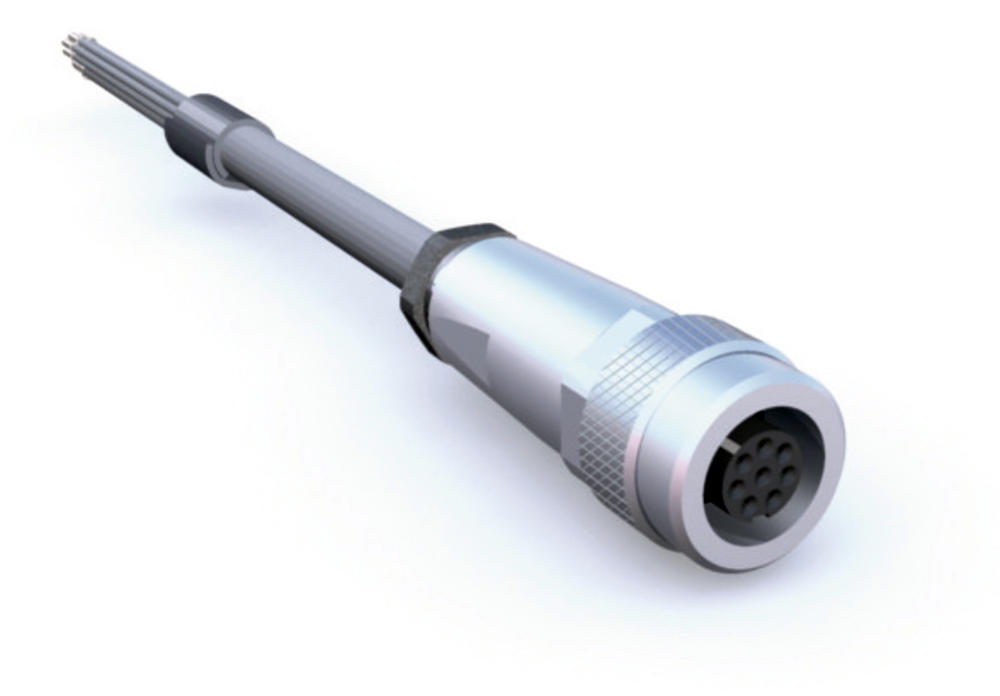

Cable extension KV08S0
Accessories
- Ready-to-use cable connection
- Cable lengths up to 15 m
- Connection technology M9, 8-pole
Note
Voltage drop should be envisaged with increasing cable length. This should be taken into account for the electrical design.
Technical drawing
Technical data
More information
pin assignment
|
Cable color |
PIN |
|
white |
1 |
|
brown |
2 |
|
green |
3 |
|
yellow |
4 |
|
gray |
5 |
|
Pink |
6 |
|
blue |
7 |
|
red |
8 |
Order
Product configuration
Feature
Select specifications
Additional information
Cable length
01.0
Scope of delivery
- KV08S0
