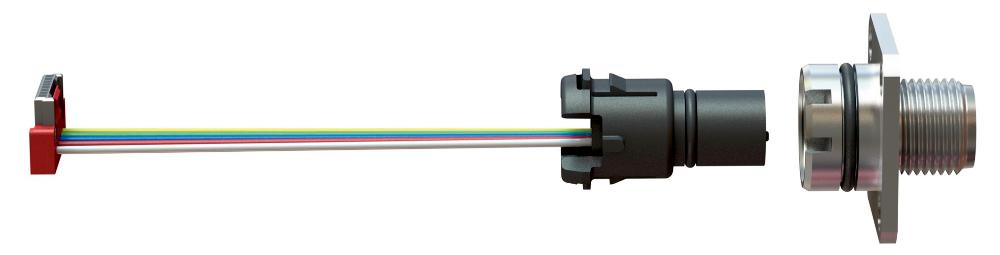

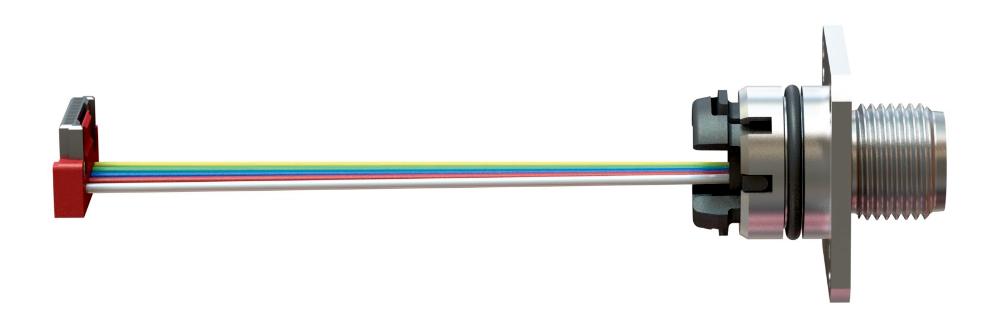

Cable extension KV1H
Accessory SGH10
- Connector system for SGH wire-actuated encoders
- Time-saving, faultless and easy mounting
- IP6K9K protection class
- extensive temperature range -40 … 105° C
- Connection technology M12 (A-coded), 5-pole
Technical drawing
Technical data
More information
pin assignment
Connection assignment A1
|
Analog signal |
PIN |
|
IOUT/UOUT |
1 |
|
+UB |
2 |
|
GND |
3 |
|
Limit 1 |
4 |
|
"Limit 2 " |
5 |
|
Signal CANopen, SAE J1939 |
PIN |
|
CAN_GND |
1 |
|
+UB |
2 |
|
GND |
3 |
|
CAN_H |
4 |
|
CAN_L |
5 |
Connection allocation A2
|
Analog signal |
PIN |
|
+UB |
1 |
|
Limit 1 |
2 |
|
GND |
3 |
|
IOUT/UOUT |
4 |
|
"Limit 2 " |
5 |
|
Signal CANopen, SAE J1939 |
PIN |
|
+UB |
1 |
|
CAN_H |
2 |
|
GND |
3 |
|
CAN_GND |
4 |
|
CAN_L |
5 |
Connection assignment A1 and A2
Order
Product configuration
Feature
Select specifications
Additional information
pin assignment
A1
Cable length
06.5
Housing
CuZn
Scope of delivery
- KV1H
