Digital position indicator DA04

Basic device with 4 decades

Hollow shaft, max. Ø 14 mm
Counter with 4 decades and fine reading
Detent as an option
Magnifying function for good readability
Stainless-steel driving shaft as an option
Axial seal, dustproof and splash-proof

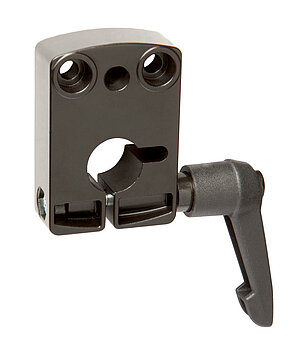

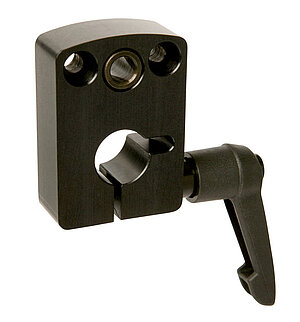

Clamping plate (see accessories)

Ben King

Inside Sales

+1 734 426-3476 ben.king(at)siko-global.com

Cary Mulvany

Manager Business Unit Changeover Solutions

+1 734 426-3476 cary.mulvany(at)siko-global.com

Add to Watchlist

Order

Ordering information

Note: Highlights in orange are order features.

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Mounting position

02

04

06

07

see the icons illustrating the mounting positions

indication after 1st revolution

10

12/5

15

17/5

20

25

30

35

40

50

60

80

100

/5 = arithmetical value not displayed

0

others on request

decimal place

0

0 = 0000

1

1 = 000.0

2

2 = 00.00

3

3 = 0.000

Counting direction

i

clockwise ascending values

e

counter-clockwise ascending values

hollow shaft/
diameter

12,7

12.7

in mm

14

15

16

VA10

VA14

VA15

RH4

RH6

RH8

RH10

RH12

reducing bushes

Color

O

orange RAL 2004

S

black RAL 9005

GR

gray RAL 7035

FR

red RAL 3000

seal

OAD

without additional seal

AD

with axial seal

GD

with axial and housing seal

sealing plate not applicable

detent/
hollow shaft

OAR

without lock

AR

with lock

vibration protection M ~20 Ncm, only for housing color O or S and hollow shaft 14, 15, VA14 or RH…r

Intermediate plate

OZP

without intermediate plate

ZP

with intermediate plate

"not with seal ""GD"""

Your order key

DA04 - 02 - 10 - 0 - i - 12.7 - O - A - K - OAD - OAR - OZP - BP - ORP

Would you like to request a non-binding offer?

Quantity:

Downloads

Data sheet

PDF

Data sheet

PDF

ES

3D-CAD model

Link/URL

Scope of delivery

DA04
