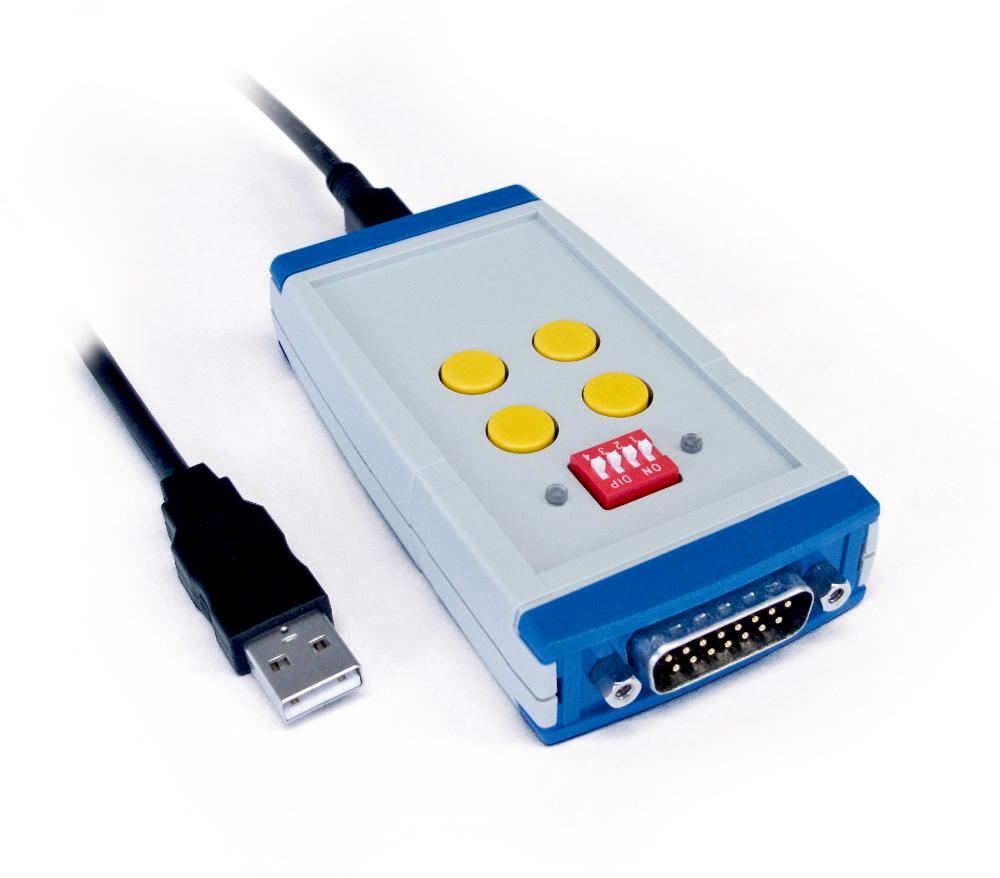

Programming tool AIF01
Accessories
- USB converter-adaptor (FTDI-chipset) to RS485, RS232, TTL
- easy connection of SIKO service interface or serial interface to a USB port
- four buttons and sliding switch for simulating external device periphery
- Function and status display LEDs
- Windows-compatible - plug & play
Technical drawing
Technical data
Mechanical data
Electrical data
Ambient conditions
Feature
Technical data
Additional information
Housing
plastic
Color
agate gray, RAL 7038
Cable length
1.8 m
USB 2.0 A connector - USB 2.0 mini-B connector
0.3 m USB 2.0, mini-B
cable adapter D-SUB socket, 15-pole, appliance inlet according to order key
Feature
Technical data
Additional information
Type of connection
USB 2.0, mini-B
bushing
D-SUB 15-pole
connector
Operating voltage
via USB or terminal
Feature
Technical data
Additional information
Ambient temperature
0 … +40 °C
Protection category
IP20
More information
pin assignment
|
Signal |
PIN |
|
S4 |
1 |
|
S1 |
2 |
|
S2 |
3 |
|
S3 |
4 |
|
+UB* |
5 |
|
TTL TX |
6 |
|
TTL RX |
7 |
|
nc |
8 |
|
GND |
9 |
|
RS232 TXD |
10 |
|
RS232 RXD |
11 |
|
RS485 A |
12 |
|
RS485 B |
13 |
|
nc |
14 |
|
+UB* |
15 |
Order
Product configuration
Feature
Select specifications
Additional information
Select your specifications:
Cable adaptor
M12/RS232
Accessories
Additional Accessories
Order key
Cable adaptor, M12/RS232, AG2XP
87892
Cable adaptor, M16/RS232, AG02-S1/00
87893
Cable adaptor, M16/RS485, AG02-S3/00
87894
Cable adaptor, M8/RS485, AG05, AG06
87895
Cable adaptor, MM/TTL, AG03/1, AG04B
87896
Scope of delivery
- AIF01
- Software on CD
- USB programming cable
- Cable adaptor
