Positioning drive AG02 Feldbus

fieldbus
SIKO Global, Positioning drive AG02 Feldbus
SIKO Global, Positioning drive AG02 Feldbus
The AG02 actuator is suitable for practically all positioning tasks thanks to its high-power density and robust design. The hollow shaft enables quick and easy installation on the existing adjustment unit, and standardized interfaces ensure smooth integration into your control system.
  • Easy mounting
  • Through hollow shafts up to max. ø14 mm
  • Integrated absolute position encoder on the output shaft
  • Integrated positioning controller
  • Integrated fieldbus interface (option)
Ben King
Ben King
Inside Sales
+1 734 426-3476 ben.king(at)siko-global.com
Cary Mulvany
Cary Mulvany
Manager Business Unit Changeover Solutions
+1 734 426-3476 cary.mulvany(at)siko-global.com
Add to Watchlist
  • Technical drawing
  • Technical data
  • More information
  • Order
  • Downloads
  • Accessories
  • Comparable products

Technical drawing

SIKO Global, Positioning drive AG02 Feldbus

Technical data

Mechanical data
Electrical data
System data
Ambient conditions
Feature
Technical data
Additional information
Shaft
black-finished steel
Housing
aluminum
Nominal torque/rated speed
5 Nm at 80 min-1
i = 55.3 (70 W-M motor)
6 Nm at 70 min-1
i = 62.2 (70 W-M motor)
9 Nm at 35 min-1
i = 135.8 (70 W-M motor)
Operating mode
S3 intermittent operation: 25 % DC, 10 min.
EN 60034-1
Weight
~1.2 kg
(Fieldbus)

Motor

Feature
Technical data
Additional information
Operating voltage
24 V DC ±10 %
reverse polarity protected, fieldbus
Power input
70 W
Parameter storage
105 cycles
also applies to calibration operations (only ABM)
Rated current
2.9 A
max. load current i = 55.3 / i = 62.2
2.1 A ±4 % (70 W-M motor)
max. load current i = 135.8
Type of connection
2x M16 plug connectors
3-pole, 1x pin| 12-pole, 1x pin
2x M12 plug connectors (A-coded)
5-pole, 1x pin| 5-pole, 1x socket (CAN)
2x M12 plug connectors (B-coded)
5-pole, 1x pin| 5-polig, 1x socket (PB)
Feature
Technical data
Additional information
Resolution
1600 Steps/revolution
ABM position encoder
Travel range
±6250 rotation(s)
ABM position encoder
Feature
Technical data
Additional information
Ambient temperature
… 50 °C
Storage temperature
-20 … 60 °C
Relative humidity
condensation inadmissible
EMC
EN 61800-3, second environment
interference resistance / immission
EN 61800-3, C3
emitted interference / emission
Protection category
IP50 (IP65 optional) with mounted mating connectors
EN 60529
Shock resistance
500 m/s2, 11 ms
EN 60068-2-27
Vibration resistance
≤100 m/s2, 5 … 150 Hz
EN 60068-2-6

More information

pin assignment

Voltage supply

Signal
 PIN
+UB
 1
nc
 2
-UB
 3

fieldbus

Profibus-DP
 CANopen
 PIN
+5 V DC
 nc
 1
BUS A
 nc
 2
GND
 CAN_GND
 3
BUS B
 CAN_H
 4
nc
 CAN_L
 5

Interface/limit switch

Signal
 PIN
ES1
 A
ES2
 B
Enable (24 V DC)
 C
nc
 D
+24 V DC
 E
nc
 F
RXD/DÜA
 G
TXD/DÜB
 H
GND/serial interface
 J
GND (ES1, ES2,Emergency-off, CAL)
 K
CAL
 L
GND
 M

Performance curve

Order

Product configuration

Feature

Select specifications

Additional information

Select your specifications:

Gear ratio

55,3

55.3

55,3

i = 55.3

62,2

i = 62.2

135,8

i = 135.8

shaft design

KR/14

KR/14

KR/14

clamping ring ø14 mm

N/10

keyway, ø10 mm

with i=55.3, other transmissions on request

Torque pin

B

B

B

lug

incl. elastomer bushing
OD

without

Interface

S1/00

S1/00

S1/00

RS232, standard, electronic control unit

S3/00

RS485, standard, electronic control unit

fieldbus

OFB

OFB

OFB

without field bus

PB

Profibus-DP

CAN

CANopen

Your order key

AG02 Feldbus - 55.3 - 70W-M - KR/14 - D - B - LA - ABM - OMS - S1/00 - OFB - SW
Would you like to request a non-binding offer?
Quantity:

Downloads

Data sheet

PDF

DE
EN
IT
ES
ZH
FR

Setup-Package

ZIP

Download

3D-CAD model

ZIP

CAD-Modell

Accessories

SIKO Global, Cable extension KV02S0
Cable extension KV02S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 3-pole

Go to Product

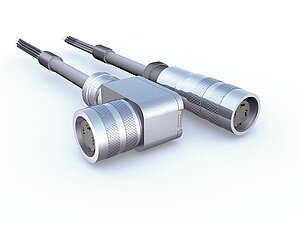

SIKO Global, Cable extension KV12S0
Cable extension KV12S0

  • Ready-to-use cable connection

  • Cable lengths up to 20 m

  • Connection technology M16, 12-pole

Go to Product

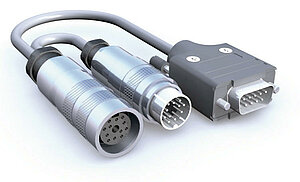

SIKO Global, Cable adaptor KA232
Cable adaptor KA232

  • Ready-to-use cable connection

  • Cable lengths up to 5 m

Go to Product
SIKO Global, Cable adaptor KA485
Cable adaptor KA485

  • Ready-to-use cable connection

  • Cable lengths up to 5 m

Go to Product
SIKO Global, Programming software ProTool DL
Programming software ProTool DL

  • Software can be run on systems with WinXP or newer without installation

  • intuitive and neat operation

  • graphical user interface

Go to Product

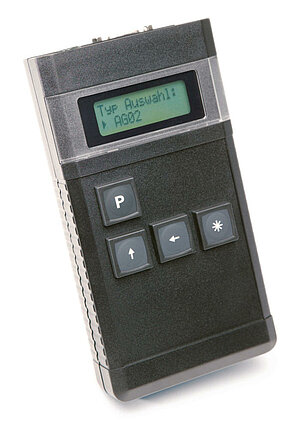

SIKO Global, Programming tool PT232
Programming tool PT232

  • 2-line illuminated LC display with plain text display

  • Easy handling thanks to a clear menu structure

  • Unambiguous programming and reading of parameters

Go to Product
SIKO Global, Overview Mating connector
Overview Mating connector

  • Mating connector, straight

  • Mating connector, offset

  • D-SUB connector

Go to Product
Additional Accessories
Order key
Mating connector, 12-pole, socket
76572
Mating connector, 12-pole, angle socket
79666
Mating connector, 3-pole, angle socket
81363
Mating connector, 3-pole, socket
82182
Mating connector, 5-pole, angle socket
82804
Mating connector, 5-pole, angular pin
82805
Mating connector, 5-pole, angle socket
83006
Mating connector, 5-pole, angular pin
83007
Mating connector, 5-pole, socket
83991
Mating connector, 5-pole, pin
83992
Mating connector, 5-pole, socket
84109
Mating connector, 5-pole, pin
84732
Bus terminating connector, 5-pole, pin
82815
Bus terminating connector, 5-pole, pin
82816

Comparable products

SIKO Global, Positioning drive AG04B
Positioning drive AG04B

  • Easy mounting

  • Stainless steel hollow shaft up to max. ø20 mm

  • """manual"" traveling without control unit by means of operator keys"

Go to Product
SIKO Global, Positioning drive AG06
Positioning drive AG06

  • easy mounting, no additional coupling needed

  • stainless steel hollow shaft, glass fibre reinforced casing

  • brushless 24 VDC motor with long service life

Go to Product

Scope of delivery

  • AG02 Feldbus
  • Quick Start Guide

Industries relevant to the product

Wooden boards at a woodworking company
Woodworking
SIKO positioning systems for packaging technology
Packaging Technology

Watchlist

Watchlist

Contact

Contact

SIKO Products Inc., Headquarters/Sales North America

Do you have questions about our company or our products?

We would be happy to help you.

sales.us(at)siko-global.com

+1 734 426-3476

Headquarters

SIKO GmbH

Weihermattenweg 2

79256 Buchenbach

Germany

Contact
+49 7661 394-0
info(at)siko-global.com
Subscribe to newsletter
Visit us at

Facebook

Instagram

Linkedin

Insta Trainee

Youtube

X

  • Format Adjustment
  • Mobile Automation
  • Drive Technology and Robotics
  • Product index
  • Positioning Systems
  • Linear Sensors
  • Rotary Sensors
  • Product Advice
  • After Sales Support
  • Repairs and Maintenance
  • Training Courses and Workshops
  • Downloads
  • Downloads for Discontinued Products
  • Tutorials and Videos
  • About us
  • Newsroom
  • Events
  • Contact
  • Legal Notice
  • Data Privacy
  • GTC
  • Cookie settings
© Copyright 2025 SIKO GmbH
